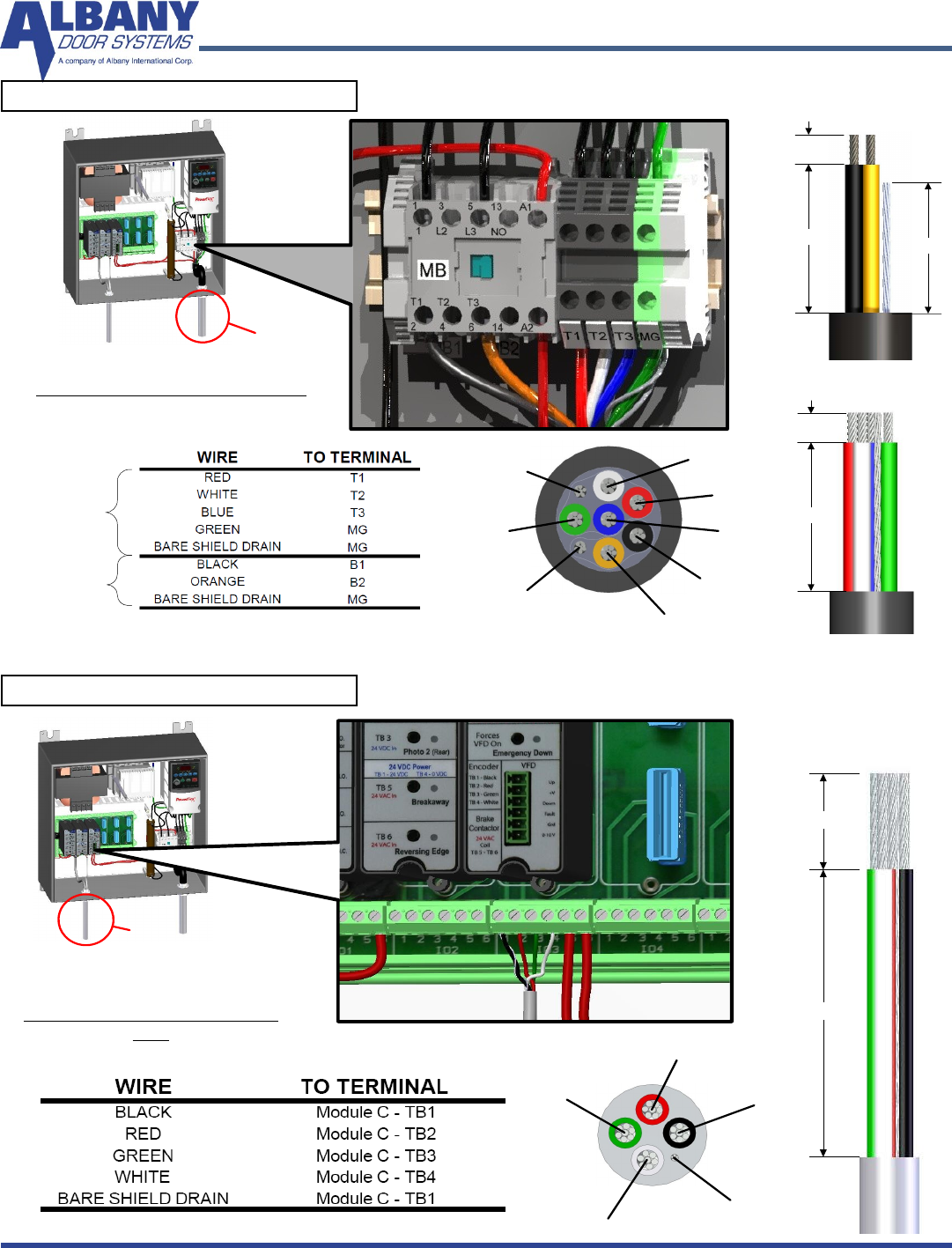

MOTOR WIRING
6"
¼”
MOTOR WIRES
DRILL ONLY INTO BOTTOM OF BOX
USE MINIMUM ¾” CONDUIT
¾”
MOTOR WIRE CONDUIT
SEPARATE
FOIL SHIELD
SEPARATE
FOIL SHIELD
BRAKE WIRES
WIRE
STRIP GAUGE
¼”
8"
6"
NOTE: TO CHANGE DIRECTION OF MOTOR ROTATION – SWITCH T1 AND T2
MG
MG
MG
T2
T1
T3
B1
B2
ENCODER WIRING
DRILL ONLY INTO BOTTOM OF
BOX
USE MINIMUM ¾” CONDUIT
¾”
LOW VOLTAGE CONDUIT
ENCODER, SAFETY, ACTIVATION
TB2
TB1
TB3
TB4
TB1
4"
¼”
WIRE
STRIP GAUGE
