Operation
High Speed Doors
Control Panel Display
The display on the front of the control panel shows two lines of information. The top line displays
system status and the second line displays details of the function or specifics of errors.
Normal Operation
During startup the display will show the software version programmed into the control panel and
whether or not the door is ready for normal operation. Once the software has booted the door is
ready for operation, the top line will display ―Door Ready‖ unless there is an error detected.
During normal operation the top line will display the current door status, with respect to movement or
timers. ―Door Ready‖ will be displayed while in standby mode, if no errors are present.
The second line on the display will show the activator name for the function, or the safety device
that triggered an action. The activator can be a manual input signal from the light curtain or reversing
edge, or a breakaway switch input.
There can be normal operation with the top line displaying ―Door Ready‖ and the display second line
showing a warning.
The ―Open: Delay timer Active‖ display is shown when the door is open and a timer function is oper-
ating to delay the door from closing. A ―Preventer‖ code may be displayed if a condition exists to pre-
vent the door from closing such as a disruption of the light curtain or a door bottom edge breakaway.
The timer is re-armed if a ―Preventer‖ condition exists.
If any of the warnings shown on page six (6) except for ―RevEdge Was Tripped‖ is displayed, please
contact Albany Door Systems for diagnosis and repair. If the bottom line displays ―RevEdge Was
Tripped‖ it indicates that the door is open due to a reversing edge trip during the previous close cy-
cle.
The diagram show on page six (6) shows examples of normal operation displays.
Operator Service
Changing the Door Closing Time Delay
In normal operation the Auto time delay selects the delay time before closing the door once it has
reached the selected open position.

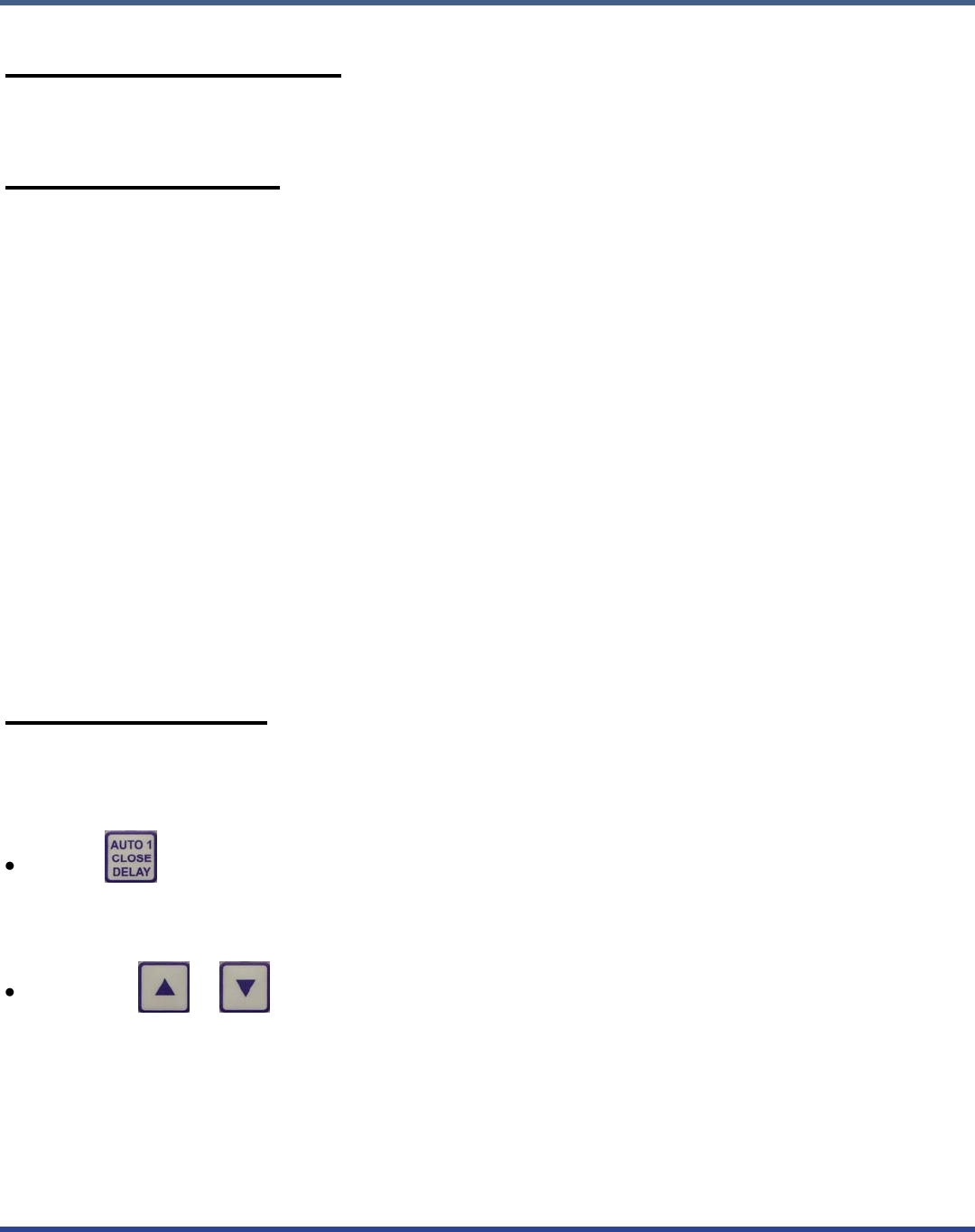

To increase the time that the door waits before closing:
Press the time delay will be displayed in seconds at a flashing cursor. If no key pad is
pressed the controller will automatically return to normal operation after approximately four (4)
seconds.
Press the
or to change the time delay in second intervals.
After four (4) seconds the display will return to normal operation and the time will be stored in mem-
ory. If the time is set to ―00‖ with the Man 1 Close Delay the door will remain open until this activator
is triggered.
Seating the Door in the Tracks
This function is not applicable for the UltraSecure door. Breakaway upon impact is not possible.
