PMW10ID3S-H1-4RT User Guide - American Industrial Systems Page 9

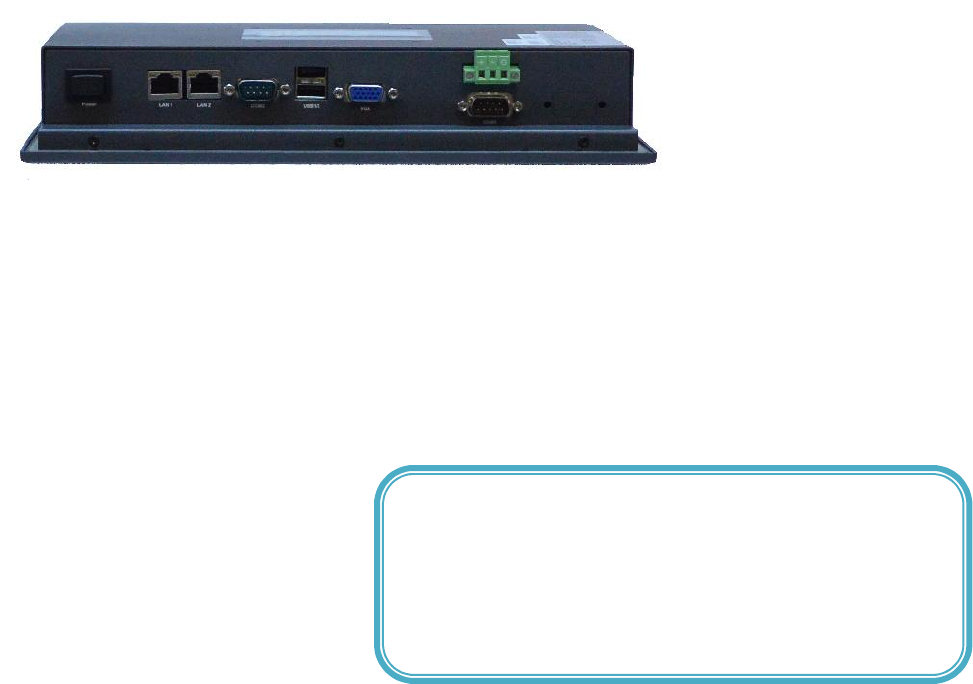

Back Panel I/O Port
1 x Power Switch
2 x RJ-45 (LAN)
1 x RS-232 only
2 x USB 2.0
1 x VGA
1 x RS-232/422/485 (configurable)
1 x Terminal Block (Phoenix Type)
Bottom side
Power Switch
AC power switch
Ethernet interface
The Motherboard is equipped with Broadcom BCM57780 chipset which is fully
compliant with the PCI 10/100/1000 Mbps Ethern et protocol compatible. It is
supported by major network operating systems. The Ethernet ports provide two
standard RJ -45 jacks.
Why 2 Ethernet ports
• LAN data collection / storage
• WAN separate and secure
• PLC / machine control interface
• Camera for security or machine vision
