Note: The format of the BS ID is important: NN-NN-NN-nn-nn-nn (where NN-
NN-NN is the Operator ID and nn-nn-nn is a unique address ID).
7. Select the BS Action from the available list.
8. Leave NTP Server as is (blank).
9. Click Submit. (Read Current = ignore/no action) (Clear IIB = ignore/no action)
9.1.2 NMS Config
1. Click NMS Config, as displayed below:

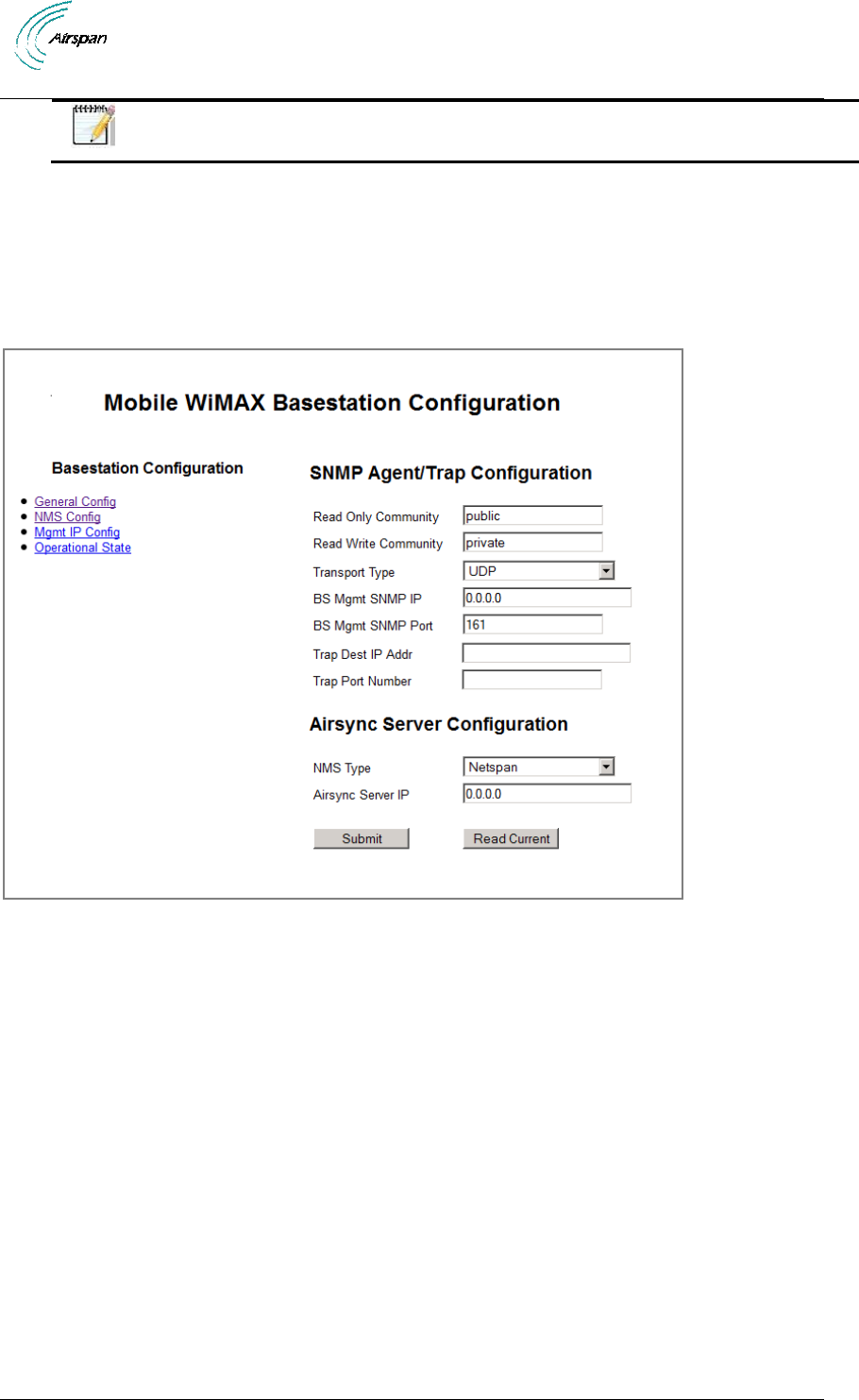

Figure 28 - SNMP Initial Configuration
2. Define Read Only Community - SNMP read only community name defined by the BS
network provider
3. Define Read Write Community - SNMP read/write community name defined by the BS
network provider.
4. Leave Transport Type as is.
5. Leave BS Mgmt SNMP IP as is.
6. Leave the BS Mgmt SNMP Port number as is. Default = 161
7. Define the SNMP Trap Dest IP Addr. (IP address of Netspan)
8. Set the SNMP Trap Port Number (for communications with Netspan) to 162.
9. Click Submit. (Read Current = ignore/no action) (Clear IIB = ignore/no action)
9.1.3 Mgmt IP Config
1. Click Mgmt IP Config, as displayed below:
