9 Initial WEB Configuration
Configure an Air4Gp base station using the built in web based interface. This prepares the
equipment for connection to Netspan.
9.1 Initial configuration
To set initial configuration, perform the following:
Caution: The GPS antenna should be installed and attached before Air4Gp is
powered on.
Caution: Wait two minutes before performing other actions.
1. Apply power to the Air4Gp.
2. With the Air4Gp powered-up connect the PC to the Ethernet port.
3. Configure the PC with an IP address in the 192.168.0.xxx range (e.g. 192.168.0.80
subnet 255.255.255.0).
4. In a browser, open web page with address 192.168.0.1 (Air4Gp default IP address).
5. Enter the default username and password:
Username = air4gweb
Password = thhr49Key
9.1.1 General Config

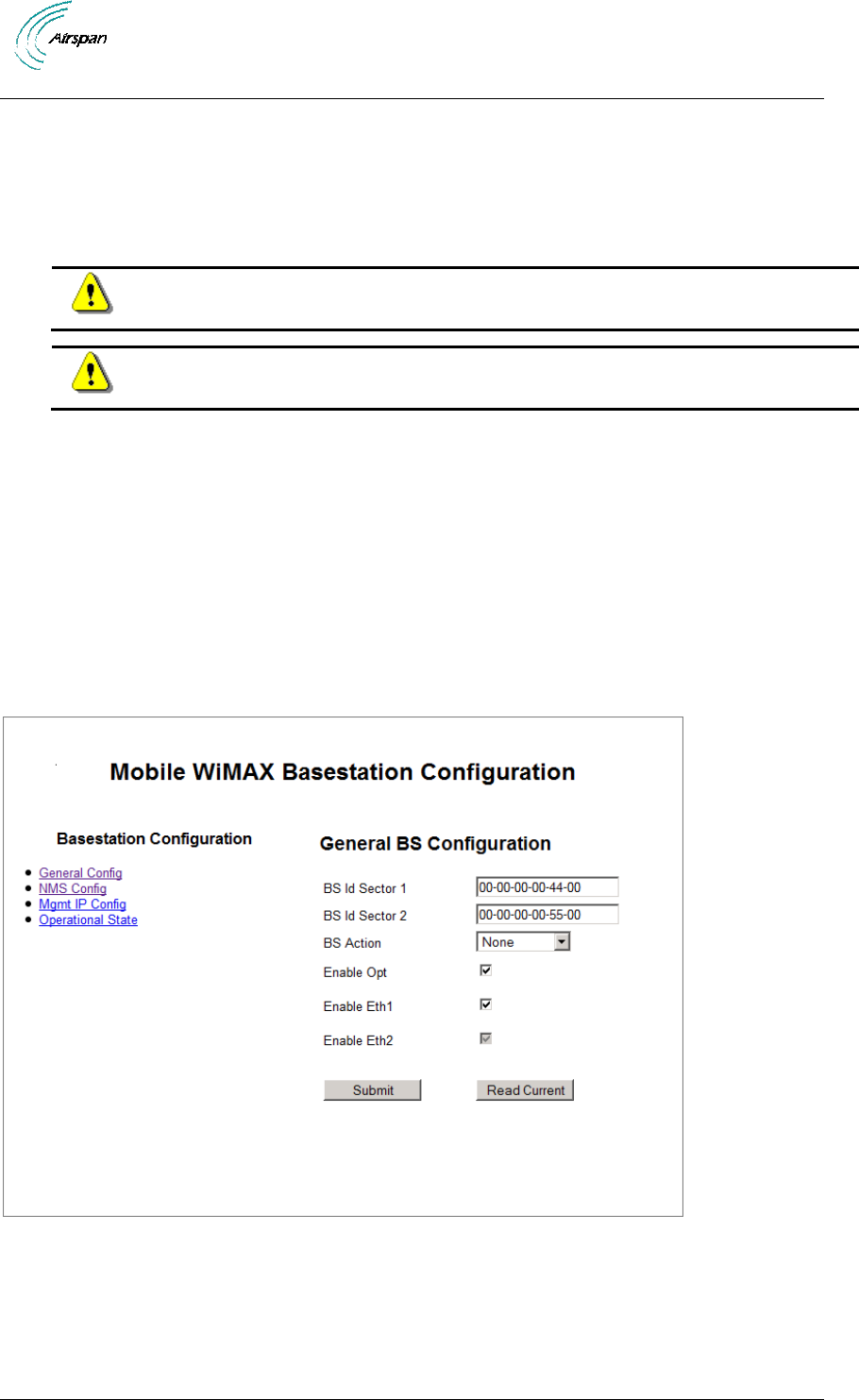

Figure 27 – General BS Configuration Initial
a. “BS ID Sector 1” is mandatory for single sector or dual sector.
b. In dual sector: “BS ID Sector 1” is the internal antenna, “BS ID Sector 2” is the
external antenna.
6. Enter the BS ID
