5 Connect and Manage Cables
The Ethernet cable is connected to the Air4Gp using a standard RJ45 connector protected by a
harsh environment protective casing.

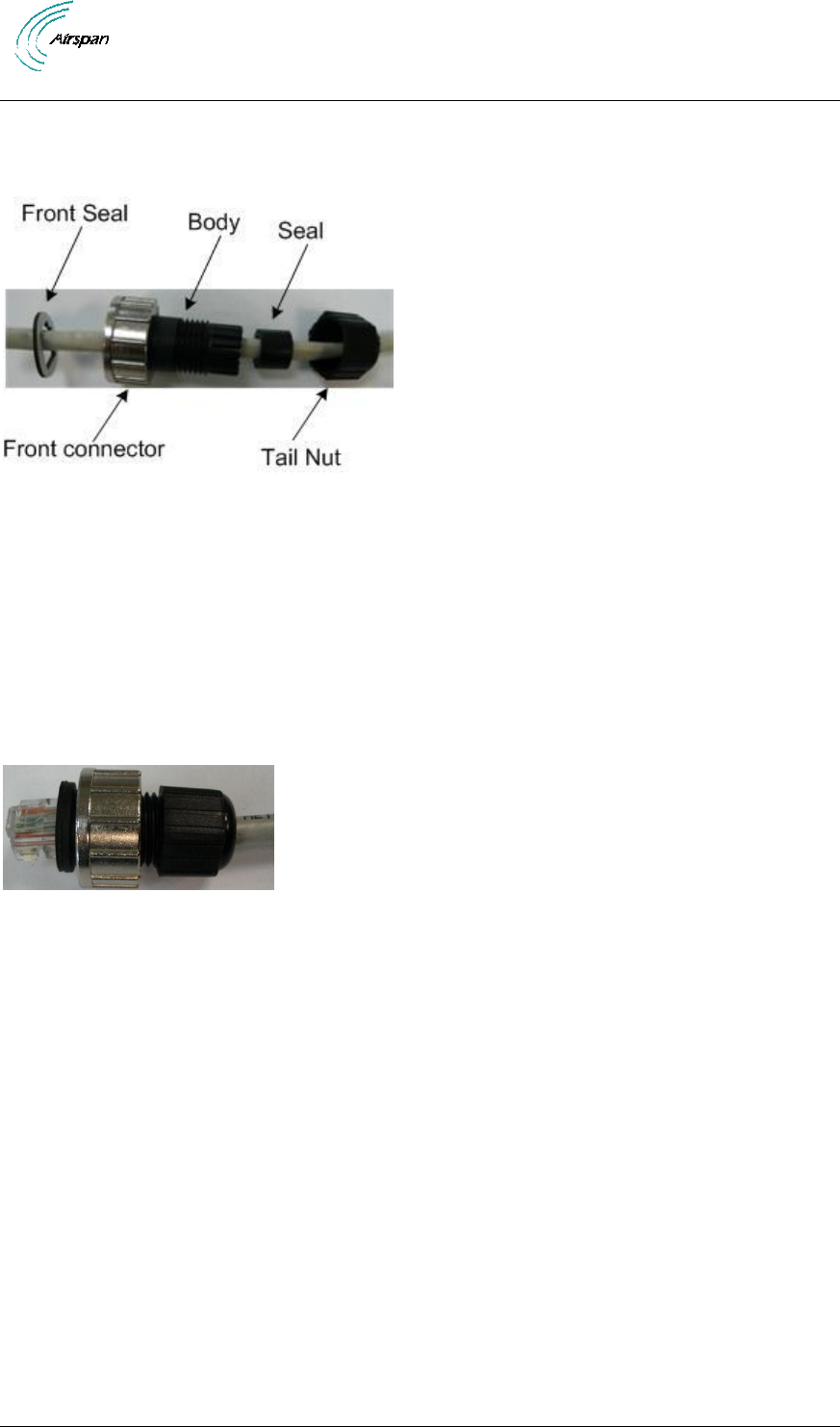

Figure 20 – Ethernet connector cable termination
5.1 Assemble Ethernet Connector
1. Pass the CAT5e cable through the seal, front connector, body and tail nut of the
environmental connector casing as shown above.
2. Paste the front seal on the collar of the connector body.
3. Terminate the Ethernet cable with an RJ45 connector plug.
4. Seat the RJ45 connector plug securely into the body cavity.
5. Tighten the tail nut on to the body forcing the seal to compress around the cable.
Figure 21 – Ethernet environmental connector assembly
