User's Manual

Air4Gp Installation Guide
Page 32 Commercial in Confidence UGD-D00236 Rev B

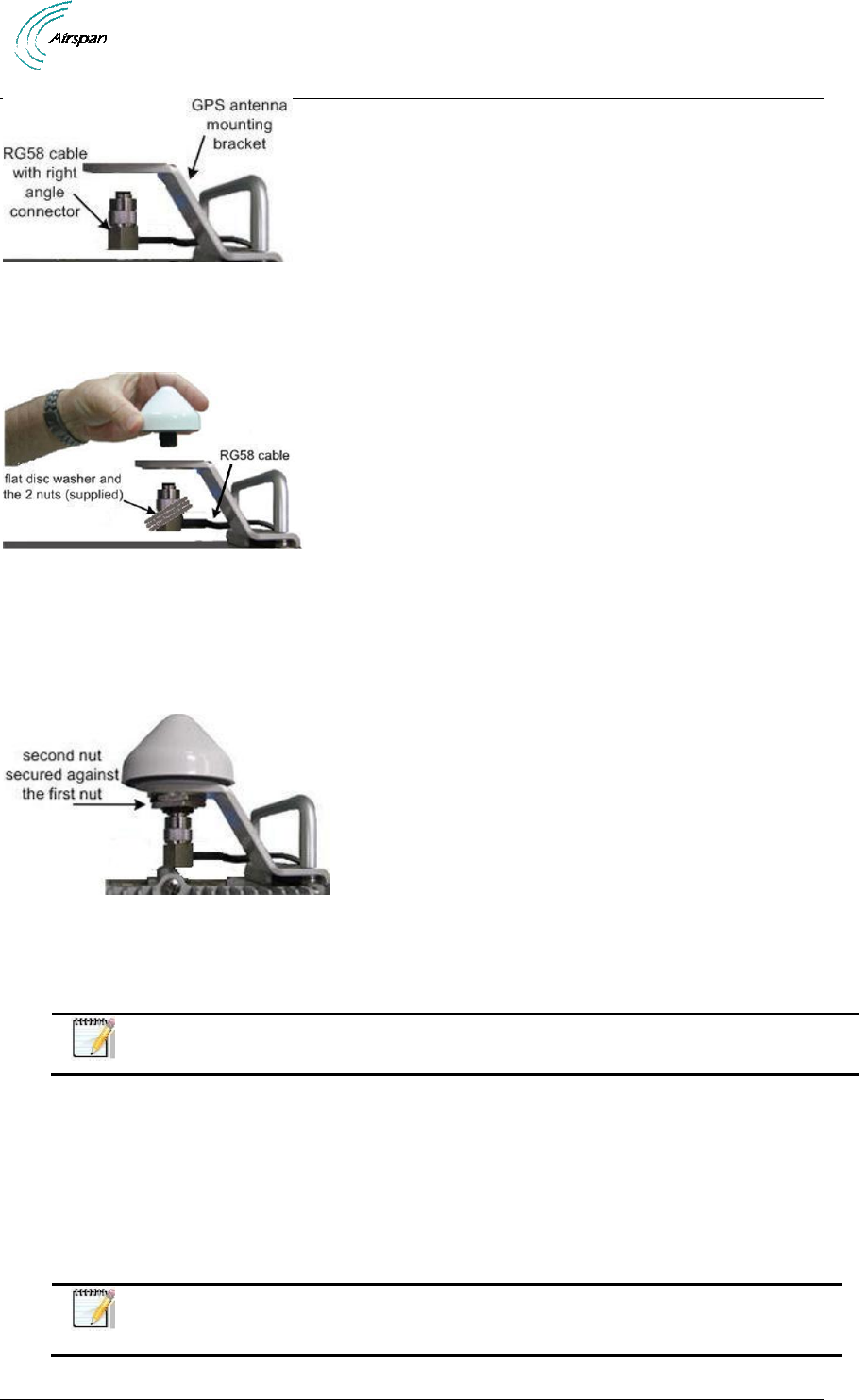

Figure 14 - GPS cable assembly prior to mounting
3. Hand-tighten the RG58 cable TNC (90°) connector to the mating connector on the GPS
antenna.
Figure 15 - Attach GPS antenna to RG58 cable
4. Slide the flat washer up to the underside of the mounting bracket, then thread 1 nut onto
the GPS antenna threaded base and tightened.
5. The second nut is then secured and tightened against the first nut to create a clamp load
against the first nut, as shown below:
Figure 16 - GPS antenna assembled on bracket
6. Connect the RG58 cable attached to the GPS to the Lightning/Surge protector (required)
which is connected to the TNC to TNC cable to the GPS connection on the bottom
Air4Gp.
Note: Affix cable to the BS to avoid strain on the connections.
7. Verify that the weatherproof cable is in the proper position and hand tighten the cable
(using no tools), to prevent water leakage. Apply self-amalgamating insulating tape on all
critical connections.
4.6.2 Remote Mounting of GPS Antenna
When mounting the GPS antenna remotely from the base station unit, the GPS antenna should
be used in conjunction with the Remote GPS Antenna Mounting Bracket (GPS-MNT-1) and either
the 16m (CBL-GPS-TNC-16-1) or the 40m (CBL-GPS-TNC-40-1) GPS Cable RG58 TNC-TNC.
Note: Care should be taken so that the remote installation of the GPS antenna
should be distanced from any obstructions that can interfere with “clear sky”
conditions.
