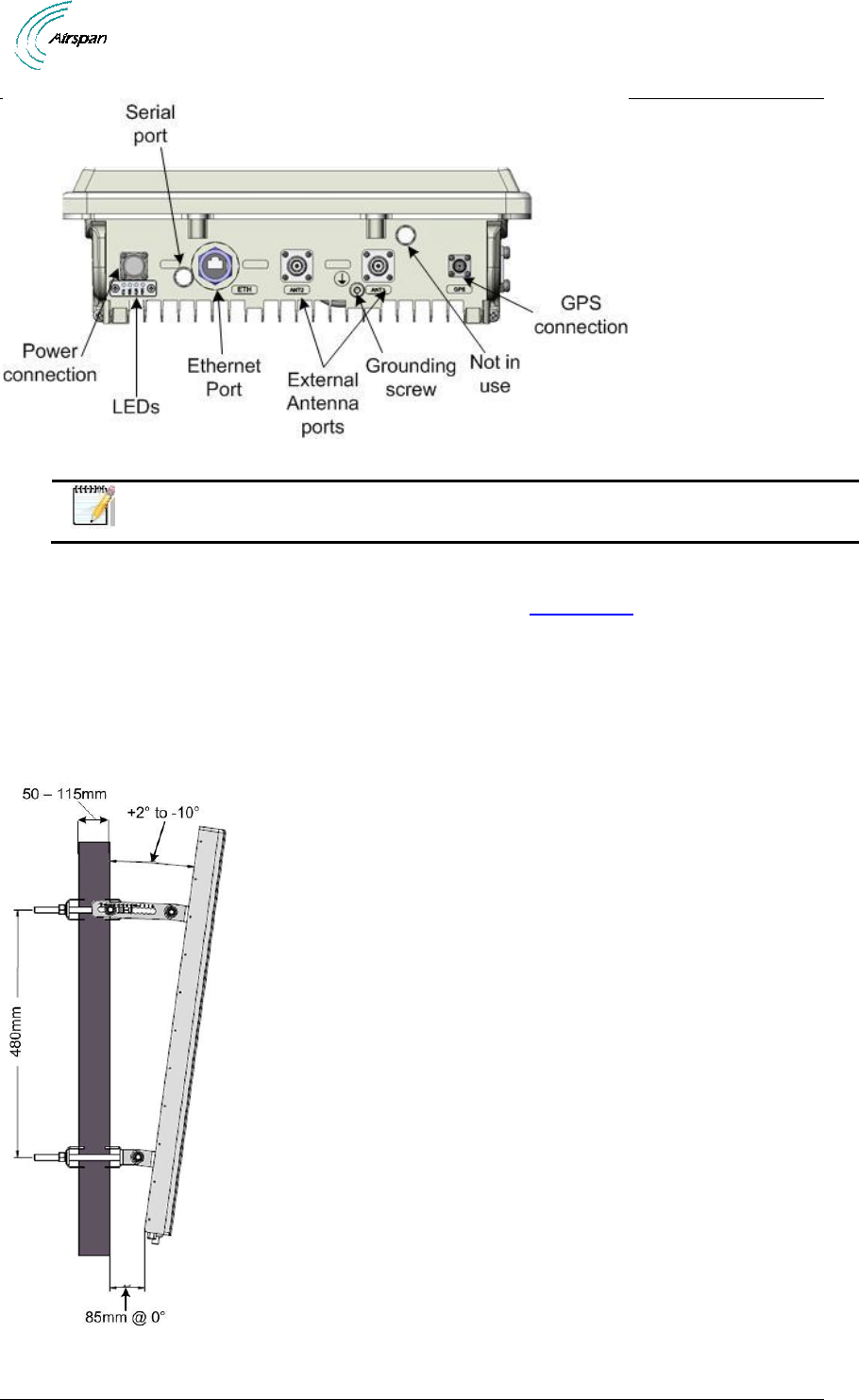

Figure 12 - Air4Gp connections (bottom)
Note: Previous versions had 3 RJ45 (Ethernet) connections.
4.3.1 LED Display
The LED’s are a visual display to indicate basic BS status, see LED Display below for a
description of the LED display.
4.4 Installing Optional External Antenna
Use this procedure to install optional external antenna for the Air4Gp in the mast mount
configuration.
4.4.1 Install Antenna
Figure 13 - Air4Gp Antenna (example) Mast Mount Configuration
