Air4Gp Base
Station parts
Consisting of
1 x Air4Gp
installation
Pole/Wall
mounting kit
(ordered
separately)
Tilting panel 402-00-184 1
1) Interface Bracket - Left 402-00-185 1
2) Interface Bracket - Right 402-00-186 1
Back bracket 402-00-188 2
Screw - M8 x 200 Hex SST AISI 304 – 4
Screw - M8 x 20 Hex SEMS SST 304 - 8
Flat washer - M8 DIN125 SST 304 - 10
Spring washer - M8 DIN 127 SST 304 - 6
Nut - M8 Hex DIN127 - 6
1 x earth kit
1 x M5 screws
1 x M5 washers
1 x M5 spring washers
Alternative: SEMS screw (includes 2 washers)
Type-IC DC
Power Cable
Available either in - 10, 15 or 30 meter lengths. Additional lengths available.
Grounding
Cable
(required) (not
included)
Circular earth braid, 120A current (16 mm²), jacketed or not with cable size =
AWG 4 – 6 with lug (terminal) on enclosure side with hole M6
The following table displays the parts contained in the included GPS Kit and when the parts are
required per configuration. See GPS Antenna Assembly
= required when applicable for this configuration
X = not required in this configuration

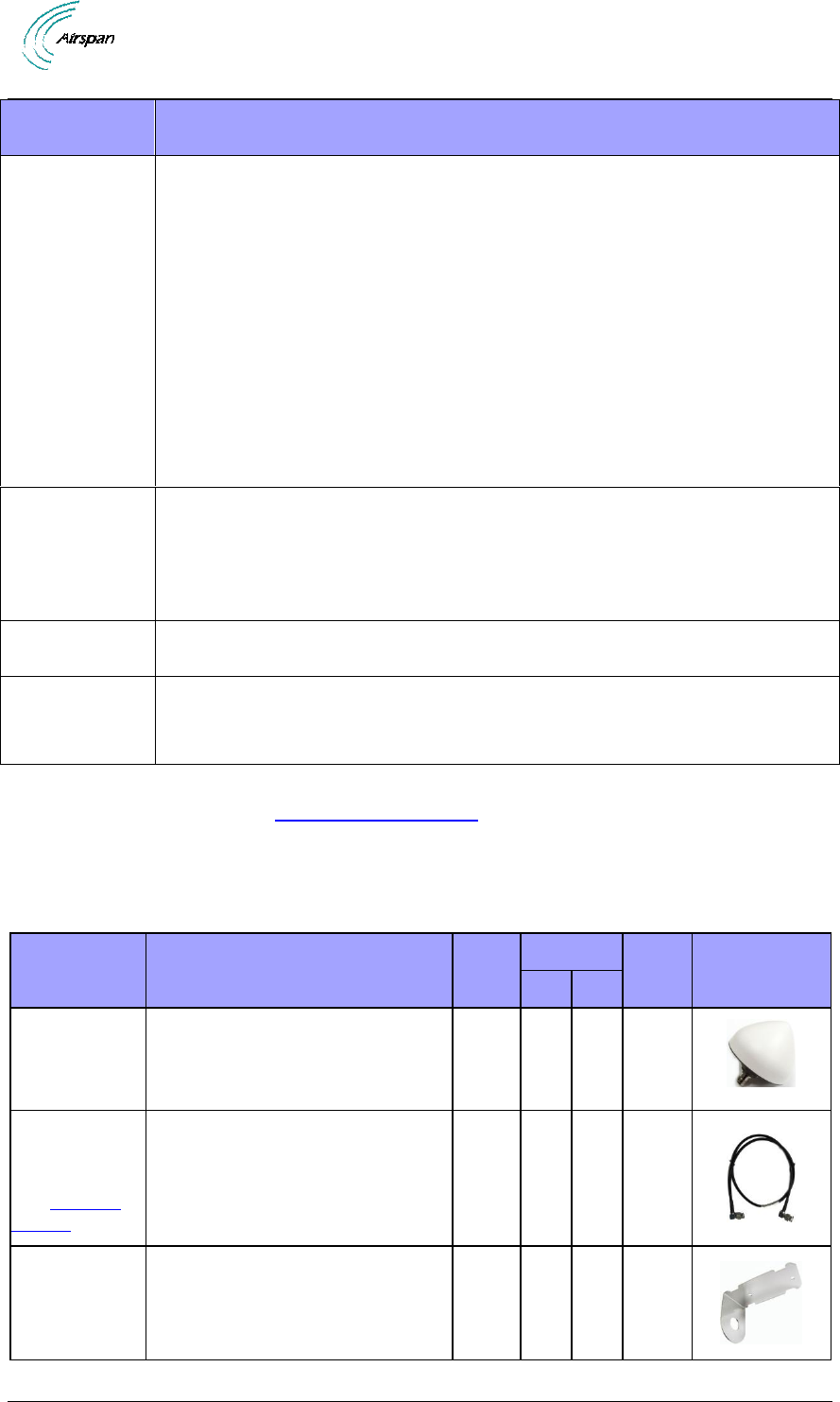

Table 7 - GPS Kit Contents
Part
Description
Air4G
Air4Gp
Air4Gs
Ext.
Int.
GPS Antenna
1 x GPS Antenna. An active GPS
antenna which, with the appropriate
mounting bracket is used with the
BS for network synchronization.




80cm GPS
Cable - RG58
TNC-TNC
See Optional
Cables
For mounting the GPS directly to
the top of the BS. Should be used in
conjunction with the BS GPS
antenna mounting bracket pre-
assembled on the BS.




Remote GPS
Antenna
Mounting
Bracket
Used in conjunction with the long
GPS Cable - when mounting GPS
remotely.
(see optional cables below)




