605-0000-701 EasyST Hardware Installation User Guide Rev H
34
Warning: Do not rotate the clip-on antenna until it has detached entirely from the
EasyST.

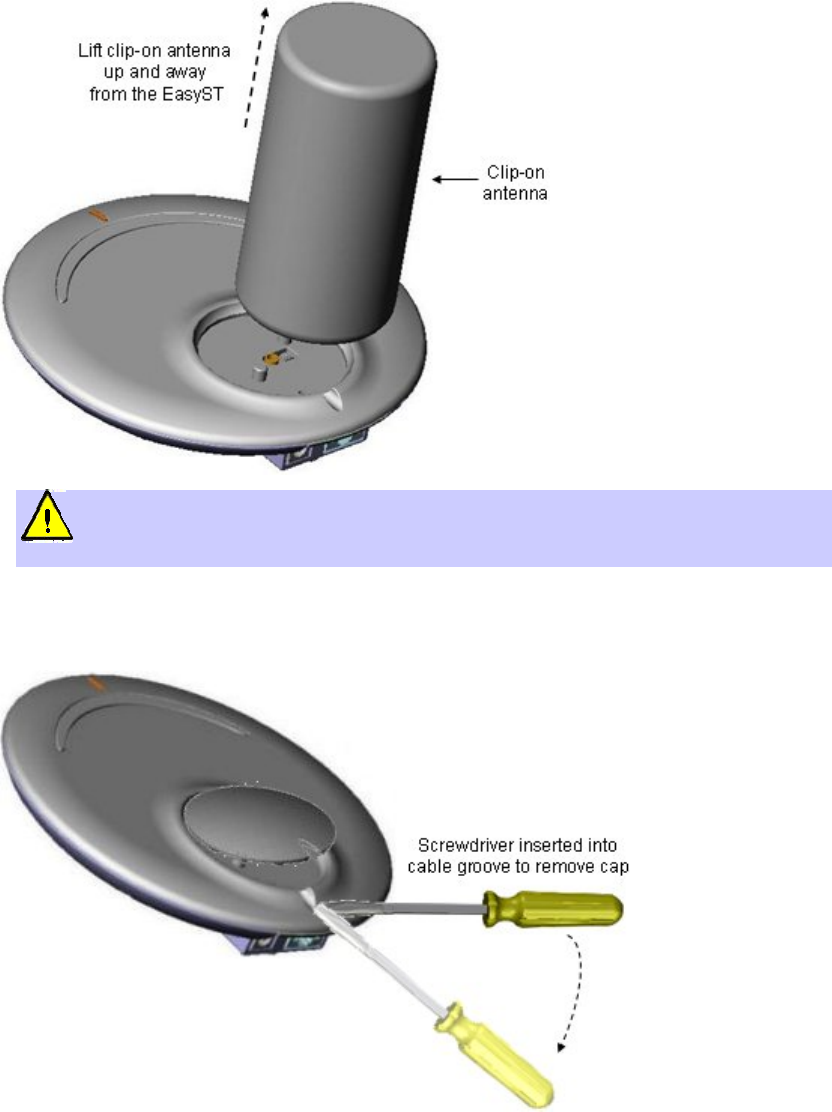

2. Remove the plastic protector cap to expose the MCX female connector. Insert a flat-head
screw driver (or any tool with a blunt, pointed edge), into the cable groove created by the
cap and the EasyST, and then gently leverage the cap's guides out of the EasyST's cover
pins.
3. Plug the external antenna's MCX connector into the EasyST's MCX female connector, as
shown below.
