Instructions / Assembly

HANGER BRACKET

CANOPY

HANGING THE FAN-CLOSE-TO-CEILING MOUNTING

WARNING: All of the parts, hardware and components such as the hanger bracket and hanger ball have been

provided for your safety and the proper installation of your new ceiling fan. The use of other parts, hardware or

components not supplied by Aire with the fan will void the Aire Warranty.

REMEMBER to turn off the power. Follow the steps below to hang your fan properly:

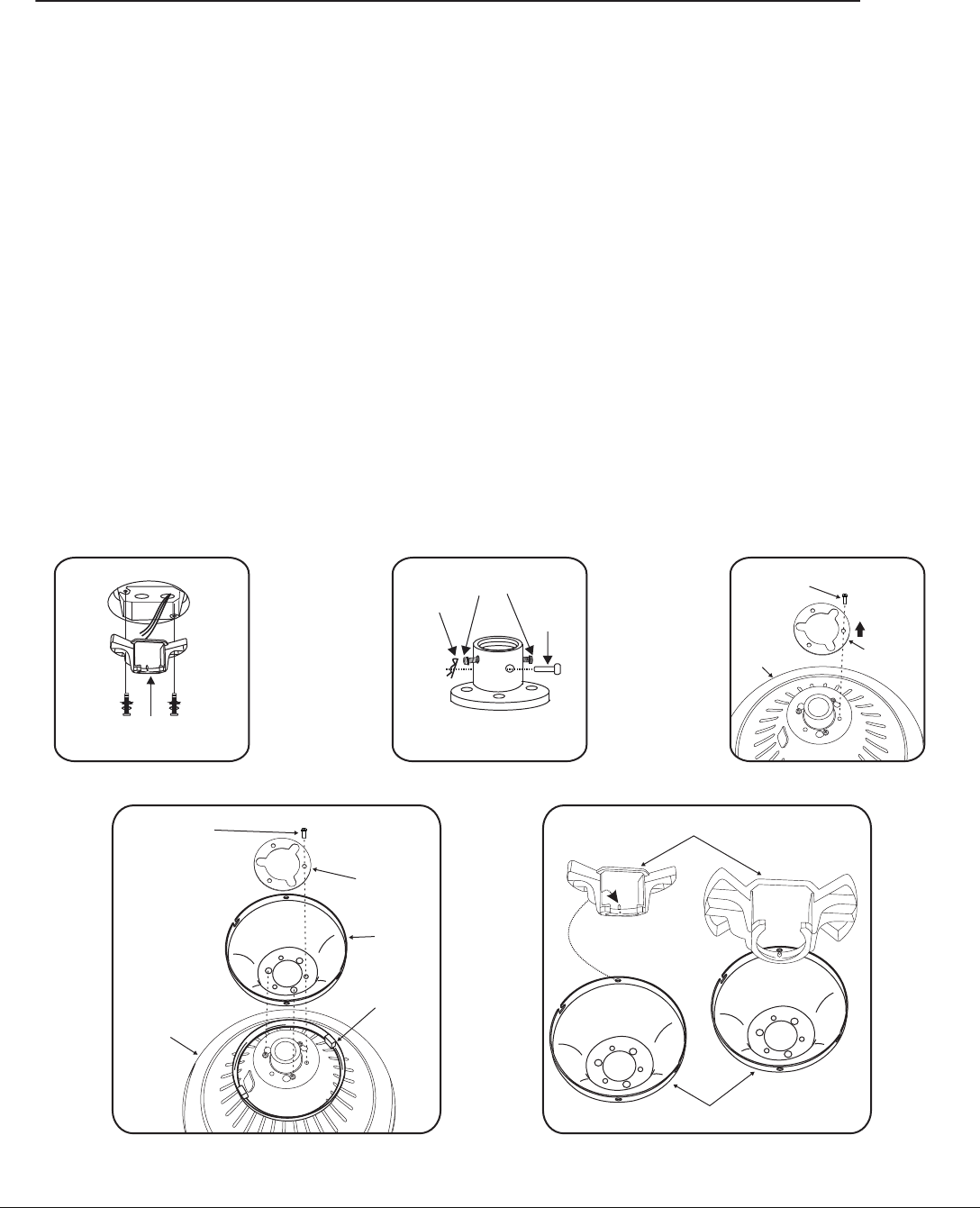

Step 1. Secure the Hanger Bracket to the ceiling outlet box using the screws provided with your outlet box in

conjunction. (Fig. 12)

Step 2. Remove the two Set Screws, the Hitch Pin and Lock Pin from the coupling located on the top of the Motor

Assembly. (Fig. 13)

Step 3. Remove the mounting plate from the coupling by removing three screws. (Fig. 14)

Step 4. Place the canopy ring and the canopy over the coupling. Attach the canopy to the fan motor assembly using the

three screws and the mounting removed in step. 3 (Fig. 15)

Step 5. To prepare the fan for wiring, hang fan onto hanging bracket by sliding the canopy over the hanging bracket tab.

(Use one of the non-slotted holes on the rim of the canopy ) (Fig. 16)

FIG. 12

FIG. 14

FIG. 15

FIG. 16

OUTLET BOX

HANGER BRACKET

HITCH

LOCK

SCREWS

MOUNTING

PLATE

MOUNTING

PLATE

CANOPY

RING

FAN

MOTOR

ASSEMBLY

FAN

MOTOR

ASSEMBLY

FIG. 13

SCREWS
