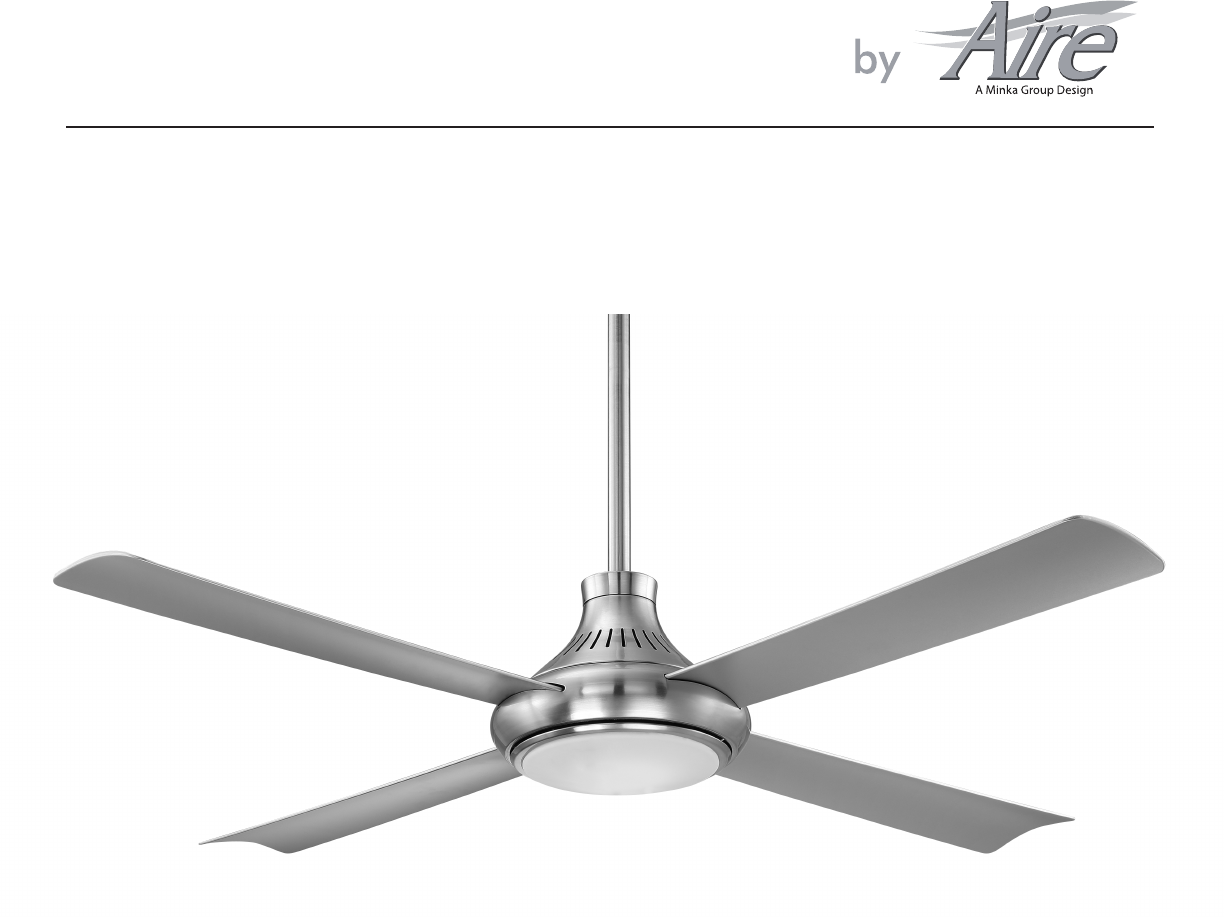

WAYWOOD READ AND SAVE ALL INSTRUCTIONS INSTRUCTION MANUAL WARRANTY CERTIFICATE
This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws. Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws. 1151 W.
WARRANTY The Aire warranty is for one (1) year from the date of purchase from an authorized Aire dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Aire warrants the motor only for the lifetime of the Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user. • The warranty is void with the use of any non-Aire electrical devices; e.g.
SAFETY RULES 1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning. 2. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70-1999” and local electrical codes. Electrical installation should be performed by a qualified licensed electrician. 3. The outlet box and support structure must be securely mounted and capable of reliably supporting a minimum of 35 lbs.
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: A. Mounting hardware: #10 x 1.5" Wood screws (2 PCs.) #8 x 3/4" Machine screws (2 PCs.) Lock washers (2 PCs.) 4mm Star washers (2 PCs.) Wire nuts (3 PCs. ) Washers (2 PCs.) B. Blade attachment hardware: 3/16" x 12.7 mm Screws (13 PCs.) Fiber washers (13 PCs.) C. Balancing kit 1. Fan blades (4) 2. Hanger bracket 3. Canopy ring 4. Canopy 5. Canopy cover 6. Downrod assembly(6") 7. Coupling cover 8.
PRE-INSTALLATION DUAL MOUNTING INSTRUCTIONS This ceiling fan is supplied with two types of hanging assemblies: the standard ceiling installation using the downrod with ball and socket mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling" mounting is recommended in rooms with less than 8 ft. ceilings or in areas where additional space is desired from the floor to the fan blades.
INSTALLING THE FAN Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. MOUNTING OPTIONS If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. The outlet box and its support must be able to fully support the moving weight of the fan (at least 50 lbs.).
HANGING THE FAN-STANDARD CEILING MOUNTING WARNING: All of the parts, hardware and components such as the hanger bracket and hanger ball have been provided for your safety and the proper installation of your new ceiling fan. The use of other parts, hardware or components not supplied by Aire with the fan will void the Aire Warranty. REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Step 1.
HANGING THE FAN-CLOSE-TO-CEILING MOUNTING WARNING: All of the parts, hardware and components such as the hanger bracket and hanger ball have been provided for your safety and the proper installation of your new ceiling fan. The use of other parts, hardware or components not supplied by Aire with the fan will void the Aire Warranty. REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Step 1.
ELECTRICAL CONNECTIONS WARNING: To avoid possible electrical shock be sure electricity is turned off at the main fuse or breaker box before wiring. NOTE: This remote control unit is equipped with 16 code combinations to prevent possible interference from or to other remote units. The frequency switches on your receiver and remote control have been preset at the factory. Please recheck to make sure the switches on the remote control and the receiver are set to the same position (Fig. 17).
FINISHING THE INSTALLATION Step 1. Remove the two screws and loosen the two screws on the hanger bracket. Step 2. Install the canopy to the hanger bracket by aligning the key holes in the fan housing with the two screws in the hanger bracket, then lifting the canopy up and turning clockwise. (Fig. 20) Step 3. Re-tighten the two screws and re-install the two screws. Tighten all screws securely. Step 4. Place the canopy ring over the top of the canopy. (Fig. 21) HANGER BRACKET SCREWS CANOPY FIG.
ATTACHING THE FAN BLADES Insert one fan blade into the blade slot on the motor housing and secure with the fiber washers and screws. Securely tighten screws. Repeat process with other blades. (Fig. 22) SLOT BLADE FIBER WASHER SCREWS FIG. 22 INSTALLING THE LIGHT KIT PLATE Step 1. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) Step 2.
INSTALLING THE 17W LED ASSEMBLY ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 75 watt limiting device. If lamping exceeds 75 watts, the ceiling fan's light kit will shut off automatically. Step 1. Remove 1 of 3 screws from the light kit plate and loosen the other 2 screws. (do not remove) Step 2. While holding the 17W LED assembly under your fan, firmly snap the wire connection plugs together. (Fig. 24) Step 3.
OPERATING THE REMOTE CONTROL Remote Control only: Install a A23 12 volt battery (included). (Fig. 26) To prevent damage to transmitter remove the battery if not used for long periods of time. Restore Power to Ceiling Fan. HI, MED, LOW buttons: Sets the fan speed. button: Turns the fan off. button: Turns the light on or off and also controls the brightness setting. Press and release this button to turn the light on or off. Press and hold the button to set the desired brightness.
CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 1. Because of the fan's natural movement some connections may become loose. Check the support connections, brackets and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from the ceiling). 2. Clean your fan periodically to help maintain its new appearance over the year. CAUTION: many common household cleaning products contain chemicals that could damage the finish of your fan.
TROUBLESHOOTING SYMPTOM SOLUTION Fan will not start Check to make sure the wall switch is turned on. Check circuit fuses or breakers. Caution! Make sure the power is turned off before performing the following steps. Remove canopy and check wire connections. Check wall control transmitter connections (if applicable). Note: Fan must be installed at a maximum distance of 40 feet from the transmitting unit for proper signal transmission between the transmitting unit and the fan's receiving unit.
SPECIFICATIONS Fan Size 56" Speed Volts Amps Watts RPM CFM Low 120 0.28 14.0 70 2138 Medium 120 0.45 35.5 121 3935 High 120 0.66 77.5 181 6086 N.W. G.W. C.F. 9.24 11.00 2.369' kgs kgs These are typical readings. Your actual fan may vary. They do not include amps and wattage used by the light(s). For any additional information about your Minka Aire® Ceiling fan, please write to: 1151 W.
