Operation and Features 2
Programming the Overcurrent Protection
U8030A Series User’s Guide 57
• If the OCP trip occurs on Output 2, the display shows triP
on line 2 and the OCP2 annunciator blinks.

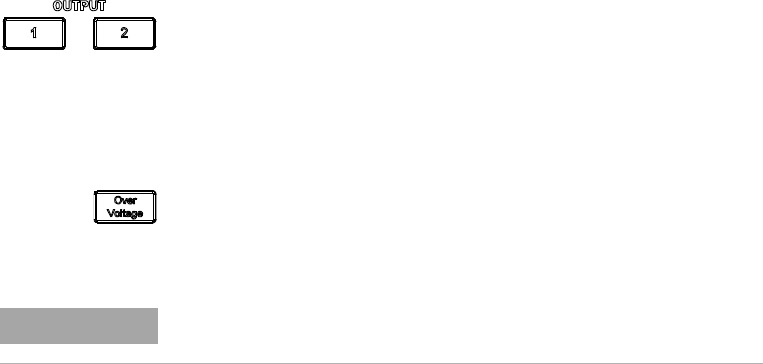

1 Select the output channel with the OCP trip.
• Press [1] to select Output 1, or
• Press [2] to select Output 2.
• The corresponding annunciator (OUT1 or OUT2) turns
on.
2 Clear the OCP trip.
• Press the [Over Current] button again to clear the OCP
trip.
NOTE
If the OCP trip persists, decrease the current limit settings to clear the
tripping.
