Programming the Overvoltage Protection
U8030A Series User’s Guide 53
4 Enable the OVP.

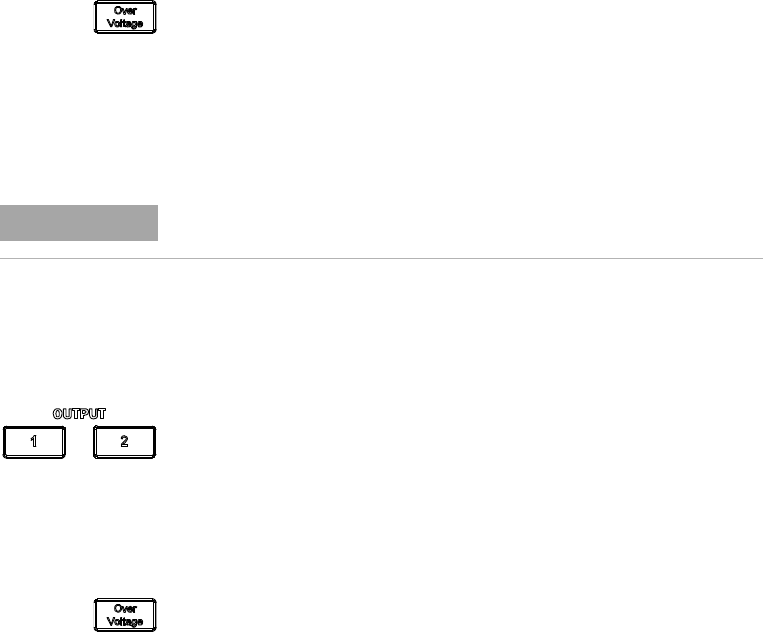

• Press the [Over Voltage] button again to end the
adjustment and enable the OVP.
• The display will show dOnE.
• The corresponding OVP annunciator (OVP1 or OVP2)
turns on.
Disable the OVP
1 Select an output channel with OVP enabled.
• Press [1] to select Output 1, or
• Press [2] to select Output 2.
• The corresponding annunciator (OUT1 or OUT2) turns
on.
2 Disable the OVP.
• Press the [Over Voltage] button again to disable the OVP.
• The corresponding OVP annunciator (OVP1 or OVP2)
turns off.
Clear the overvoltage condition
The OVP trip can only occur if the corresponding output is
enabled. When the OVP trip occurs, the corresponding
output is disabled automatically.
• If the OVP trip occurs on Output 1, the display shows triP
on line 1 and the OVP1 annunciator blinks.
NOTE
To cancel this operation, allow the unit to idle for five seconds.
