2 Operation and Features
Programming the Overvoltage Protection
52 U8030A Series User’s Guide
Programming the Overvoltage Protection
Overvoltage protection guards the load against output
voltages reaching values greater than the programmed
protection level.
The following steps shows you how to enable and disable the
overvoltage protection (OVP), how to set the OVP trip level,
and how to clear the overvoltage condition.
Set the OVP trip level and enable the OVP

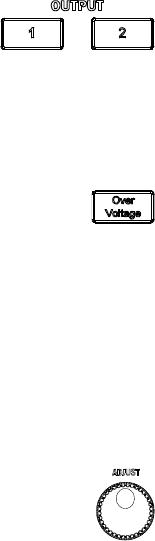

1 Select an output channel.
• Press [1] to select Output 1, or
• Press [2] to select Output 2.
• The corresponding annunciator (OUT1 or OUT2) turns
on.
2 Set the OVP trip level.
• Press the [Over Voltage] button.
• The LIMIT annunciator turns off.
• The corresponding OVP annunciator (OVP1 or OVP2) will
blink continuously.
• The display will show the OVP value for the selected
output.
• The V annunciator will blink continuously.
3 Turn the knob to adjust the OVP value.
• While the V annunciator is blinking, turn the knob and
adjust to the desired OVP value.
