2 Operation and Features
Output On/Off Operation
46 U8030A Series User’s Guide
Turn on or off individual outputs

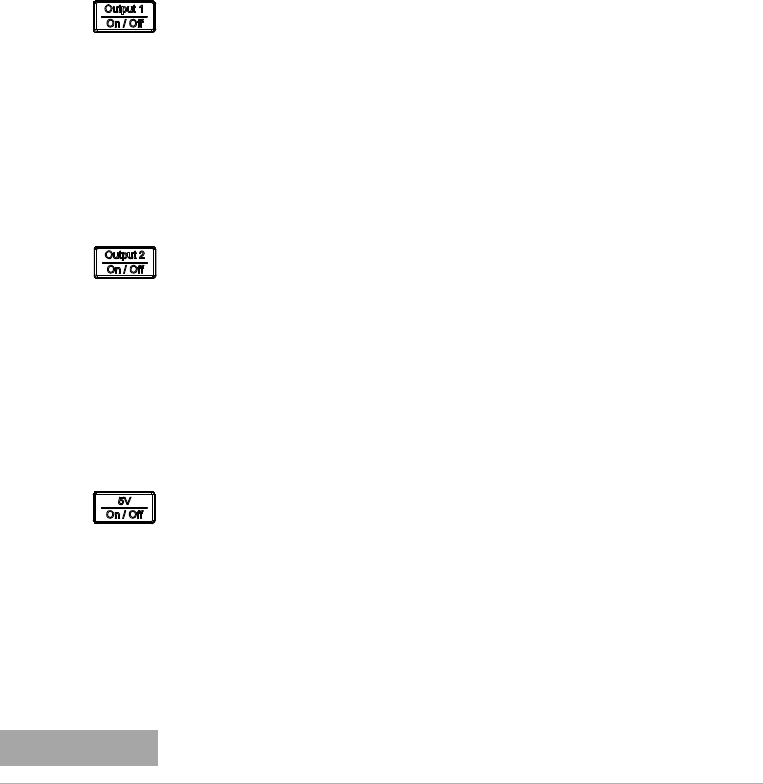

Each output can be individually enabled or disabled by
pressing its corresponding On/Off button.
1 Enable or disable Output 1.
• Press the [Output 1 On/Off] button to enable Output 1.
• The display shows voltage and current values for
Output 1 on line 1.
• The display Output 2 on line 2 remains unchanged.
• Press the [Output 1 On/Off] button again to disable
Output 1.
2 Enable or disable Output 2.
• Press the [Output 2 On/Off] button to enable Output 2.
• The display shows voltage and current values for
Output 2 on line 2.
• The display Output 1 on line 1 remains unchanged.
• Press the [Output 2 On/Off] button again to disable
Output 2.
3 Enable or disable the 5 V output.
• Press the [5 V On/Off] button to enable the 5 V output.
• The 5 V annunciator turns on.
• The display Output 1 and Output 2 on line 1 and 2
remains unchanged.
• Press the [5 V On/Off] button again to disable the 5 V
output.
NOTE
The OFF annunciator turns on only when all the three outputs are disabled.
