2 Operation and Features
Track Mode Operation
44 U8030A Series User’s Guide
Track Mode Operation
When the track mode is enabled, the voltage settings of
Output 1 and Output 2 will mirror each other. The following
steps show you how to track the voltage of the selected
output.

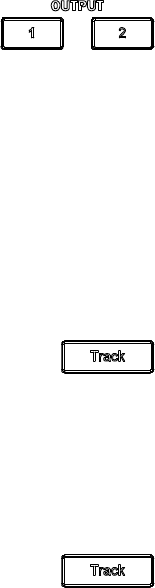

1 Select an output channel.
• Press [1] to select Output 1, or
• Press [2] to select Output 2.
• The corresponding annunciator (OUT1 or OUT2) turns
on.
2 Set the desired voltage setting for the selected output
channel.
• Repeat step 3 to step 7 from the “Constant Voltage
Operation” on page 38.
3 Enable the track mode.
• Press and hold the [Track] button. The display shows
HOLd until the track mode is enabled.
• The TRACK annunciator turns on.
• The voltage setting of the non- selected output is set to
the same voltage setting of the selected output.
4 Disable the track mode.
• Press the [Track] button again. The TRACK annunciator
turns off.
• The track mode is disabled.
