Constant Voltage Operation
U8030A Series User’s Guide 39

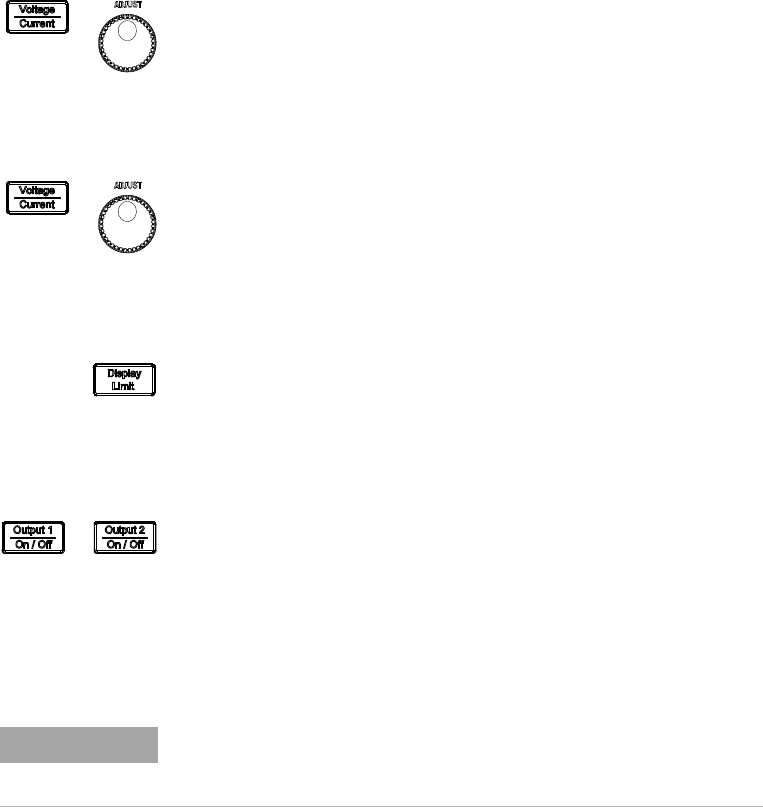

4 Adjust for the desired output voltage.
• Press the [Voltage/Current] button if necessary until the
V annunciator blinks.
• While the V annunciator is blinking, turn the knob to
adjust for the desired output voltage value.
5 Adjust for the desired current limit.
• Press the [Voltage/Current] button if necessary until the
A annunciator blinks.
• While the A annunciator is blinking, turn the knob to
adjust for the desired current limit value.
6 Return to the meter mode.
• Press the [Display Limit] button to return to the meter
mode.
• The LIMIT annunciator turns off.
7 Enable the output.
• Press the [Output 1 On/Off] or [Output 2 On/Off] button to
enable the output.
• The OFF annunciator turns off and the CV annunciator
turns on for the corresponding output.
• The display is now in the meter mode.
NOTE
Verify that the power supply is in the constant voltage mode. Ensure that
the constant voltage (CV) annunciator is on. If the constant current (CC)
annunciator is on instead, choose a higher current limit.
