2 Operation and Features
Constant Voltage Operation
38 U8030A Series User’s Guide
Constant Voltage Operation
The following steps show you how to perform the constant
voltage (CV) operation.

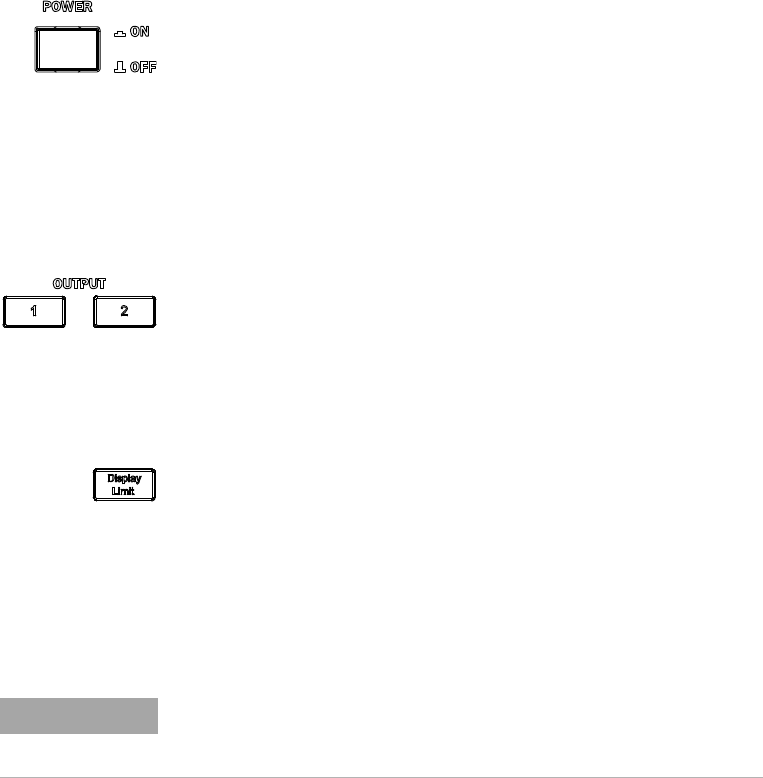

1 Turn on the power supply.
• Press the [POWER] button to turn on the power supply.
• The power supply will then perform a self- test
(self- test is not indicated at the display).
• The display turns on all annunciators briefly.
• The outputs are disabled by default. The OFF
annunciator turns on.
• The display shows OFF for both outputs (line 1 and 2).
2 Select an output channel.
• Press [1] to select Output 1, or
• Press [2] to select Output 2.
• The corresponding annunciator (OUT1 or OUT2) turns
on.
3 Set the display to the limit mode.
• Press the [Display Limit] button to set the display to the
limit mode. The LIMIT annunciator turns on.
• The display will show the voltage and current limit
values for the selected output.
• The display for the non- selected output remains
unchanged.
NOTE
When you press the [Display Limit] button, the voltage and current limit
values will be shown on the display for about five seconds. If there is no
activity detected, the display will return to the meter mode.
