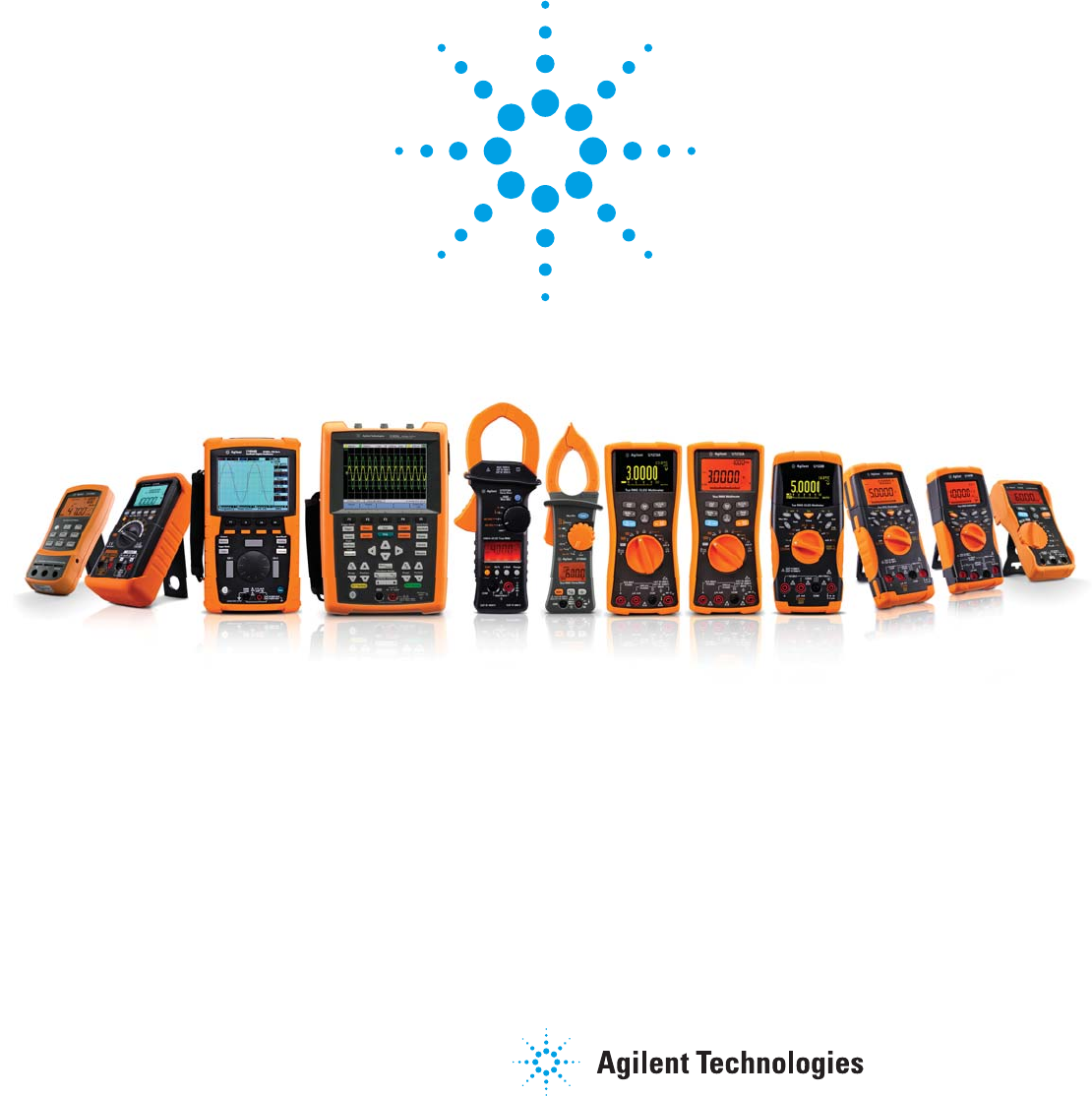

Agilent Handheld Tools For Electronic, Electrical and Industrial Process Testing • Digital multimeters • Digital oscilloscopes • Clamp meters • LCR meters • Multifunction calibrator meter • Capacitance meters
Retool Your Expectations For more than 70 years, Agilent has been creating innovative measurement solutions. In recent years, we’ve been applying our tradition of innovation to handheld tools for electrical and electronics testing.
Digital Multimeters Whatever your applications are, Agilent’s handheld digital multimeters are up to the task. From electronics troubleshooting to installation and maintenance of machinery, our handheld DMMs are designed to withstand the harsh working conditions and improve safety. Our range of handheld DMMs are also equipped with smart features to help you quickly detect problems and obtain accurate measurements. Model no.
Digital Multimeters Continued Model no.
Clamp Meters Our clamp meters are designed to address the toughest electrical challenges without compromising on safety. Certified with safety ratings and equipped with a wealth of features – you are now ready to make measurements with more confidence. Recommended for Model no.
Clamp Meters Continued Recommended for Model no.
Oscilloscopes Our handheld scopes are designed to be used across a wide range of applications and troubleshooting tasks. Each model come with different specifications to tailor to your needs, and are safety certified for safer measurements. Model No.
Oscilloscopes Continued Model No. U1602B U1604B U1610A U1620A Measurement characteristic Resolution 6,000 counts 10,000 counts Continuity Beeper < 60 W in 600 W range Continuous beep when resistance <10 Ω Datalogger Yes Yes 4.5" diagonal color 5.
U1230 Series – Handheld Digital Multimeters Whether it is dark, noisy or even dangerous, the U1230 Series Handheld digital multimeter keeps you equipped with features that anticipate worst-case scenarios. The ergonomic shaped handheld allows you to single-handedly illuminate the test area with a built-in flashlight while selecting measurement functions using the rotary dial.
Specifications of the U1230 Series Digital Multimeters Continued U1231A U1232A U1233A N/A 60 µA to 10 A 1.5% + 3 cnts 45 to 500 Hz 60 µA to 10 A 1.5% + 3 cnts 45 to 500 Hz 600 Ω to 60 MΩ 0.9% + 3 cnts 600 Ω to 60 MΩ 0.9% + 3 cnts 600 Ω to 60 MΩ 0.9% + 3 cnts 99.99 Hz to 99.99 kHz 0.1% + 2 cnts 99.99 Hz to 99.99 kHz 0.1% + 2 cnts 99.99 Hz to 99.99 kHz 0.1% + 2 cnts 1000 nF to 10 mF 1.9% + 2 cnts 1000 nF to 10 mF 1.9% + 2 cnts 1000 nF to 10 mF 1.
Recommended Accessories U1168A Standard test lead kit U1173A IR-to-USB cable Web link www.agilent.com/find/U1230DMM How to? Select a Handheld DMM that is Right for You http://cp.literature.agilent.com/litweb/pdf/5990-5197EN.pdf Think Safety When Selecting a Handheld Multimeter http://cp.literature.agilent.com/litweb/pdf/5990-4578EN.
U1240 Series - Handheld Digital Multimeters Installation and maintenance of machinery, electrical systems and more often require numerous quick checks and fixes, sometimes under hazardous conditions. Whether you need to quickly inspect power supplies for harmonics, detect glitches in switch systems or monitor differential temperature, the U1240 Series of handheld digital multimeters (DMMs) is up to the task.
Regular maintenance with an accurate, dependable DMM ensures early detection of harmonics in the AC supply. One of the quickest ways to detect and gauge the percentage of distortion due to harmonics is to measure the harmonic ratio of the incoming AC voltage. Harmonic ratio The U1240 Series offers a fast one-button check with its harmonic ratio function. The ratio percentage helps you decide if further analysis of the power source is necessary with an oscilloscope or a spectrum analyzer.
Dual and differential temperature for efficient testing of HVAC systems Whether you’re installing, maintaining or troubleshooting heating, ventilation and air-conditioning (HVAC) systems in cars, offices, factories, stores or homes, temperature measurements are crucial. For example, to ensure boiler temperature meets safety requirements, you’d have to measure boiler and air temperature simultaneously to get accurate real-time readings.
Specifications of the U1240 Series Digital Multimeters Continued U1241B U1242B Min/Max/Avg recording Yes Yes Data hold Yes Yes Data management Null Yes Yes Data logging N/A 100 manual, 200 interval points Safety and regulatory Over-voltage safety protection CAT III 1000 V/CAT IV 600 V CAT III 1000 V/CAT IV 600 V EN/IEC 61010-1:2001 compliance Yes Yes CSA C22.2 No.
U1250 Series - Handheld Digital Multimeters The process of isolating faults is always unpredictable—so it’s good to be equipped with a versatile DMM that simplifies analysis, accelerates glitch detection and makes it easier to probe hard-to-reach points. The U1250 Series gets even better with the U1253B DMM and its razor-sharp OLED display: You’ll get crystal-clear readings indoors, even in dark, off-angle situations.
Applications with the U1250 Series Handheld Digital Multimeters Automated data logging to PC for long, continuous measurements Qualification and troubleshooting of a device-under-test (DUT) often require long periods of testing, over either different temperatures or parameter settings. A common test would be voltage measurements at room, hot and cold temperatures. In such cases, it’s more convenient and efficient to automate recording of measurements while you perform other tasks that are at hand.
Built-in square-wave generator for designing and troubleshooting motor drivers In the motor-driver circuit shown, a signal from the pulse-width modulation (PWM) inverter drives the motor and is fed back to the speed controller circuit. In design and troubleshooting applications, these pulses are generated externally—usually with a function generator or pulse generator—and injected into the circuit to simulate actual pulses from the inverter.
Specifications of the U1250 Series Digital Multimeters Continued U1251B U1252B U1253B N/A 0.5 Hz to 4.8 kHz, selectable Hz and % 0.5 Hz to 4.
U1270 Series – Handheld Digital Multimeters The U1273A, the latest addition to the U1270 Series is re-invented with an OLED display to ensure crystal clear viewings – even in off-angle situations! All models are ergonomically-built providing useful functions such as ZLOW, which eliminates stray voltages, and Smart Ohm that minimizes false readings from residual voltage induced by leakage current. All of this is designed into a case that fulfills the needs of today's industrial handheld users.
Sometimes, a maintenance check on the motor and VFD reveals that the actual output voltage and frequency from the VFD differs from the readings on the VFD display. This shows that the VFD might be faulty and may therefore need replacement or repair. The difference in voltage readings could also be contributed by harmonics produced by the output of the VFD. This problem must be addressed quickly because if this situation prolongs, the motor may overheat and eventually fail, causing downtime.
Specifications of the U1270 Series Digital Multimeters Di U1271A U1272A U1273A 30,000 30,000 30,000 Auto/manual ranging Yes Yes Yes Analog bar graph Yes Yes Yes Basic features Display resolution Backlight AC bandwidth True RMS Yes Yes Yes 20 kHz 100 kHz 100 kHz AC AC + DC AC + DC Measurements Voltage DC Range Accuracy 300 mV to 1000 V 0.05% + 2 cnts 30 mV to 1000 V 0.05% + 2 cnts 30 mV to 1000 V 0.05% + 2 cnts Voltage AC Range Accuracy Bandwidth 300 mV to 1000 V 0.
Specifications of the U1270 Series Digital Multimeters Continued Di U1271A U1272A U1273A OLED display — — Yes Beep + visual alert Yes Yes Yes Low pass filter (LPF) Yes Yes Yes ZLOW - low impedance mode N/A Yes Yes Smart Ω N/A Yes Yes Qik-V Yes N/A N/A CAT III 1000 V, CAT IV 600 V CAT III 1000 V, CAT IV 600 V CAT III 1000 V, CAT IV 600 V EN/IEC 61010-1:2001 compliance Yes Yes Yes CSA C22.2 No.
U1190 Series – Clamp Meters Agilent’s U1190 Series clamp meters are packed with a wealth of features to help you work more efficiently and more safely. Housed in robust cases, each model comes with an innovative wire separator that helps you isolate and measure individual wires in a bundle. The built-in LED flashlight illuminates your test area and Vsense performs non-contact voltage detection.
Specifications of the U1190 Series Clamp Meters Di U1191A U1192A U1193A U1194A 6,000 Average Responding 6,000 Average Responding 6,000 True RMS 6,000 True RMS 600 V 600 V N/A N/A 400 A N/A 600 Ω to 6 kΩ N/A 1.5 V 600 Ω N/A N/A 60 to 600 V 60 to 600 V N/A N/A 40 to 600 A N/A 600 Ω to 60 kΩ 600 µF to 6 mF 1.5 V 600 Ω N/A 99.99 Hz to 99.99 kHz 60 to 600 V 60 to 600 V N/A N/A 60 to 600 A N/A 600 Ω to 60 kΩ 600 µF to 6 mF 1.5 V 600 Ω N/A 99.99 Hz to 99.
U1210 Series – Handheld Clamp Meters Measurements of electrical distribution cables can be challenging and risky. For cables up to two inches in diameter, the Agilent U1210 Series handheld clamp meters enable high-current measurements without breaking the circuit. Unlike most clamp meters, they also include DMM capabilities—resistance, capacitance, frequency and temperature—to simplify troubleshooting during installation and maintenance.
Full-featured digital multimeter functions – make more than just current measurements The U1210 Series clamp meters are versatile handheld test tools that combine a current clamp with a digital multimeter (DMM). The U1210 Series provides basic functions of a multimeter with wide measurement ranges to cater for a broad range of applications: ACA, DCV, ACV, OHM, audible continuity, capacitance, diode and frequency tests.
Specifications of the U1210 Series Clamp Meters Continued U1211A U1212A U1213A Data hold Yes Yes Yes Null Yes Yes Yes MAX/MIN/AVG Yes Yes Yes Peak hold Yes Yes Yes CAT III 1000 V/CAT IV 600 V CAT III 1000 V/CAT IV 600 V CAT III 1000 V/CAT IV 600 V EN/IEC 61010-1:2001 compliance Yes Yes Yes CSA C22.2 No.
Digital Oscilloscopes U1600 Series - Handheld Digital Oscilloscopes A scope with a color waveform display. A DMM for basic measurements. A data logger to record DMM readings to a PC. All three capabilities are in one instrument—the U1600 Series of handheld digital oscilloscopes. Designed to address the portability needs of various installation and maintenance applications, these scopes enable clear waveform viewing, easy waveform analysis and quick isolation of signal glitches.
Advanced FFT and waveform math follow wherever you go Time is especially precious on the manufacturing line. When a test system fails, quick troubleshooting and analysis is needed to get the line running again as soon as possible. The portable, lightweight U1600 Series is more convenient than conventional benchtop oscilloscopes. Its small form adds versatility when measuring hardto-reach points in the test system, and its large color LCD display enables clear viewing of waveforms.
Specifications of the U1600 Series Digital Oscilloscopes U1602B U1604B 4.5” color LCD 4.
Specifications of the U1600 Series Digital Oscilloscopes Continued U1602B U1604B CAT III 300 V CAT III 300 V EN/IEC 61010-1:2001 compliance Yes Yes CSA C22.2 No. 610101:2004 compliance Yes Yes 0 to 50 °C 0 to 50 °C Rechargeable Ni-MH Rechargeable Ni-MH 4 hours 4 hours • USB 2.0 full-speed client for data transfers to PC • USB 2.0 full-speed host for data transfers to USB flash drive (Option 001) • USB 2.0 full-speed client for data transfers to PC • USB 2.
U1610A/U1620A- Handheld Digital Oscilloscopes Agilent's U1610A/U1620A is the world’s first handheld oscilloscope with a VGA display. With a bandwidth of 100/200 MHz, the handheld oscilloscope offers a floating measurement capability with two CAT III 600 V isolated channels. With up to 2 GSa/s sampling rate and 2 Mpts memory depth, it captures more waveforms from signals such as pulse width modulated circuit, in-rush, transient, and motor start up sequences.
Indoor mode Outdoor mode Night vision mode The indoor mode has high contrast and brightness levels to clearly distinguish waveforms under the indoor light environment. Furthermore, the TFT LCD technology enables the screen to be viewed across wide viewing angles for more efficient troubleshooting task. When performing field work in an outdoor environment, users can easily switch to this viewing mode via a set of accessible soft keys.
Specifications of the U1610A/U1620A Digital Oscilloscope Continued U1610A U1620A DMM True RMS Yes Yes Voltage AC/DC 1000.0 mV to 1000.0 V 1000.0 mV to 1000.0 V Current AC/DC 40 A/400 A 1 40 A/400 A 1 Resistance 1000.00 Ω to 100.00 MΩ 1000.00 Ω to 100.00 MΩ Capacitance 1000.0 nF to 10.000 mF 1000.0 nF to 10.000 mF Temperature –40 to 1000 °C –40 to 1000 °C Continuity with beeper Yes Yes Diode test 1V 1V Min/Max/Avg recording Yes Yes Data logging (requires bundled USB 2.
Multi-function Calibrator/Meter U1401B – Handheld Multi-function Calibrator/Meter More often than not, the calibration of process control parts requires simultaneous measurements with a DMM. Carry two tools in one—and calibrate while you measure— with the Agilent U1401B handheld multi-function calibrator/meter. Now you can travel light, whether you’re doing calibration for validation, troubleshooting, or service and maintenance. Slip the robust U1401B in its sturdy carrying case and you’re ready to go.
Built-in pulse signal generator for calibrating flow meter systems U1401B Flow meters output pulses with frequencalibrator/meter simulates cies that are proportional to the rate of electrical signal generated by the flow meter flow of liquid that passes through its bladed turbine rotor. These pulses are then fed Adjustable to a signal conditioner.
Specifications of the U1401B Multi-function Calibrator/Meter Continued U1401B Data management Min/Max/Avg recording Peak recording Data hold Data logging to PC Yes Yes Yes Yes (requires IR-to-USB cable U5481A for connection to PC) Safety and regulatory Over-voltage safety protection CAT II 150 V EN/IEC 61010-1:2001 compliance Yes CSA C22.2 No. 61010-1:2004 compliance Yes General Operating temperature Battery (included) 0 to 40 °C 9.
Capacitance/LCR meters U1700 Series – Handheld Capacitance/LCR meters Agilent’s U1730C Series handheld LCR meters allow you to measure at frequencies as high as 100 kHz—a capability typically found only in benchtop meters. Get measurements done faster using the one-touch automatic identification function button which displays component type and more detailed component analysis such as Z, ESR, and DCR. Ideal for testing on the go, these LCR meters operate on a battery that lasts up to 16 hours.
Tolerance and compare modes for quick component sorting On the manufacturing floor, components may come in large batches for quick sorting to pre-defined specifications. Tolerance mode in the U1700 Series lets you zap through sorting of incoming capacitors, inductors or resistors to 1%, 5%, 10% or 20% tolerance of the specified reference value.
Specifications of the U1700 Series Capacitance/LCR Meters Continued U1701B U1731C U1732C U1733C Yes Yes Yes Yes Safety and regulatory EN/IEC 61010-1:2001 compliance General Operating temperature Battery (included) Battery life I/O 0 to 50 °C –10 to 55 °C, 0 to 80% R.H. –10 to 55 °C, 0 to 80% R.H. –10 to 55 °C, 0 to 80% R.H.
Accessories Compatibility Chart Handheld clamp meters Ordering number Handheld scopes Handheld DMMs Hand- Handheld held calibrator/ scopes meter Description U1211A/ 12A/ 13A U1191A/ 92A/ 93A/ 94A U1231A/ 32A/ 33A U1241B U1242B U1251B U1252B U1253B U1271A U1272A U1273A U1602B/ U1610/ 04B 20A U1401B Handheld capacitance/ LCR meters U1701B/ U1731C/ 32C/33C Kits U1161A Extended test lead kit × U1168A Standard test lead kit × U1180A Thermocopule adapter+lead kit U1580A × × × × × × × ×
Accessories Compatibility Chart Continued Handheld clamp meters Ordering number Handheld Handheld scopes scopes Handheld DMMs Handheld calibrator/ meter Handheld capacitance/ LCR meters U1401B U1701B/ U1731C/ 32C/33C Description U1211A/ 12A/ 13A U1191A/ U1231A/ 92A/ U1602B/ 32A/ U1241B U1242B U1251B U1252B U1253B U1271A U1272A U1273A 93A/ 04B 33A 94A U1610/ 20A Probes/clips for scope-only functions U1176A Probe clip light U1554A Hook clip for probe tip × × × × × × × × × × × × × U
Optional Accessories U1161A Extended Test Lead Kit U1173A IR-to-USB cable • Extended test leads: CAT III 1000 V, CAT IV 600 V, 15 A • Test probe (4-mm tips): CAT III 1000 V, CAT IV 600 V, 15 A • Medium-sized alligator clips: CAT III 1000 V, CAT IV 600 V, 15 A • 4-mm banana plugs: CAT II 600 V, 10 A • For remote control and data logging to PC • Max.
Optional Accessories U1572A Li Polymer battery pack U1560A – Scope probe x1 CAT III 300 V • 4800mAh, 10.8V • Compatible with U1610A/20A handheld oscilloscope • Include ground alligator clip and hook clip, rated CAT III 300 V U1573A Desktop charger & Li Polymer battery pack ack • 4,800 mAh, 10.
Optional Accessories Continued U1570A AC power adapter • Includes AC power cord based on country • For use with U1600 series scopes U1571A Ni-MH battery pack • 4500 mA, 7.
