2 Making Measurements
Using VZ
LOW
for Voltage Measurements
38 U1231A/U1232A/U1233A User’s Guide
Figure 2-7 VZ
LOW

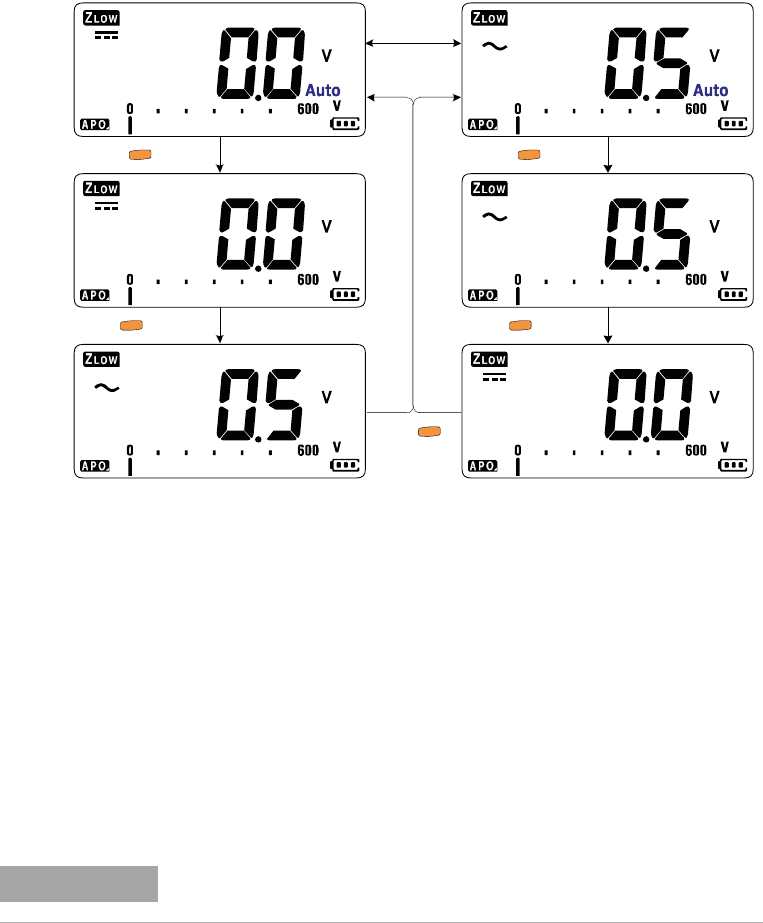

auto identification flow
Using VZ
LOW
to test a battery’s health
Aside from reading a battery’s voltage level using the DC
voltage measurement function, you can also use the VZ
LOW
function to test a battery’s health.
If you detect that the measured battery’s voltage shown in
the VZ
LOW
function is declining gradually, this means that
the capacity of the battery- under- test is not enough to
support regular functions. Use this simple and quick test to
determine if a battery has enough voltage capacity to
support regular activities.
Aut o
identification
initial signal identification
S
h
i
f
t
E
s
c
Press to lock the
the signal indication to DC V
S
h
i
f
t
E
s
c
Press to exchange
initial signal identification
S
h
i
f
t
E
s
c
Press to lock the
the signal indication to AC V
S
h
i
f
t
E
s
c
Press to exchange
to restart Auto
Identification
S
h
i
f
t
E
s
c
Pr es s
NOTE
Prolonged use of the VZ
LOW
function will consume the capacity of the
battery-under-test.
