Programming instructions

Getting Started
Using LAN
Chapter 1 21

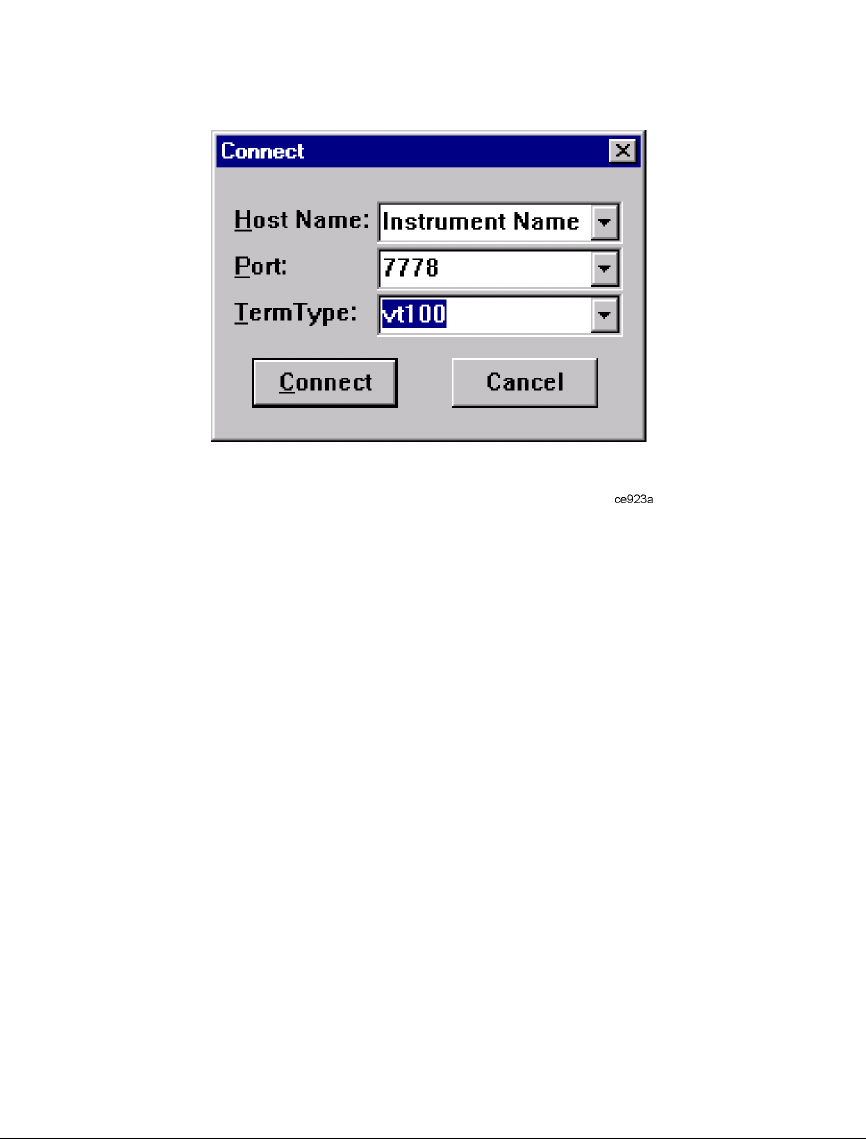

Figure 1-3 Connect Form
Using TELNET On a PC With a Host/Port Setting Menu GUI
1. On your PC click
Start > Run.
2. Type telnet then click the
Ok button. The TELNET connection screen will be displayed.
3. Click on the
Connect menu then select Remote System. A connection form will be displayed.
Refer to Figure 1-3.
4. Enter the hostname, port number, and TermType then click Connect. Refer to Figure 1-3.
• Host Name - signal generator’s IP address or hostname
• Port - 7778
• Term Type - vt100
5. At the SCPI> prompt, enter SCPI commands. Refer to Figure 1-4.
6. To signal device clear, press Ctrl-C.
7. Select
Exit from the Connect menu to end the TELNET session.
