Programming the Status Register System
Status Groups
Chapter 3 117

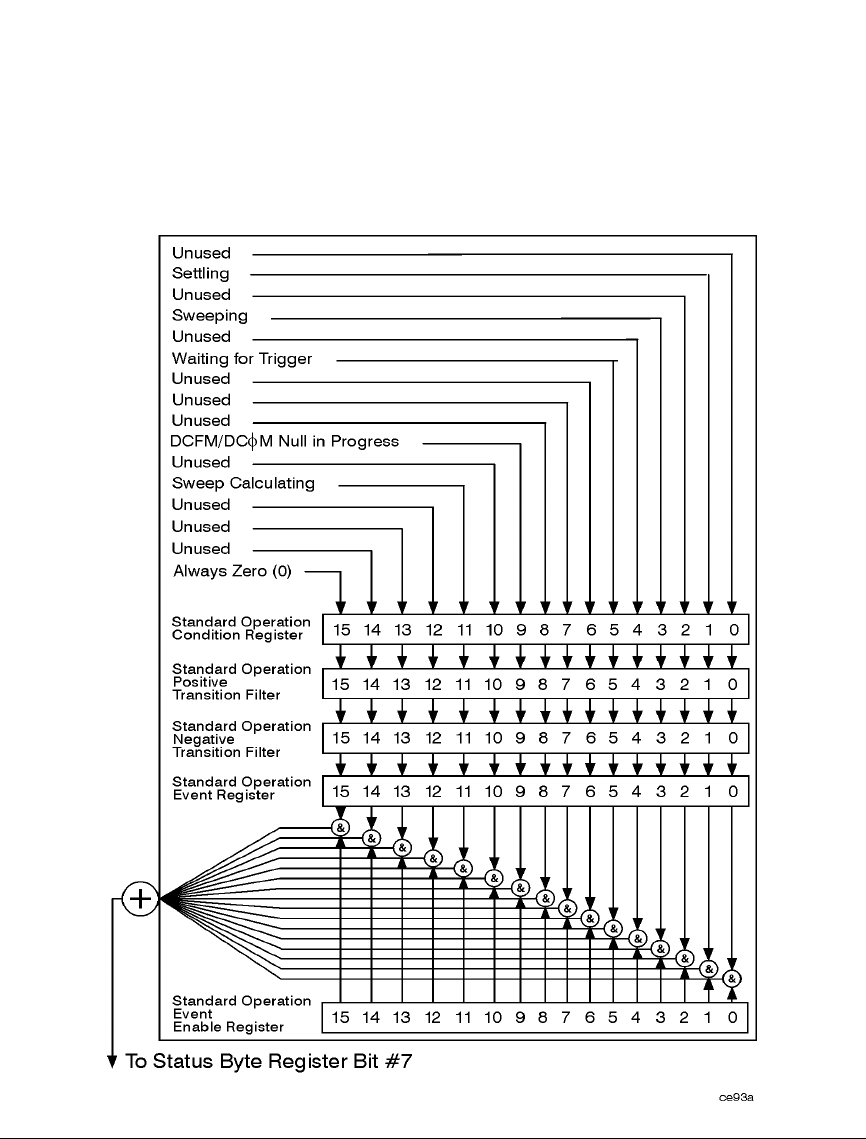

Standard Operation Status Group
The Standard Operation Status Group is used to determine the specific event that set bit 7 in
the Status Byte Register. This group consists of the Standard Operation Condition Register,
the Standard Operation Transition Filters (negative and positive), the Standard Operation
Event Register, and the Standard Operation Event Enable Register.
