Programming the Status Register System
Status Groups
Chapter 3114
Byte Register.
Standard Event Status Group

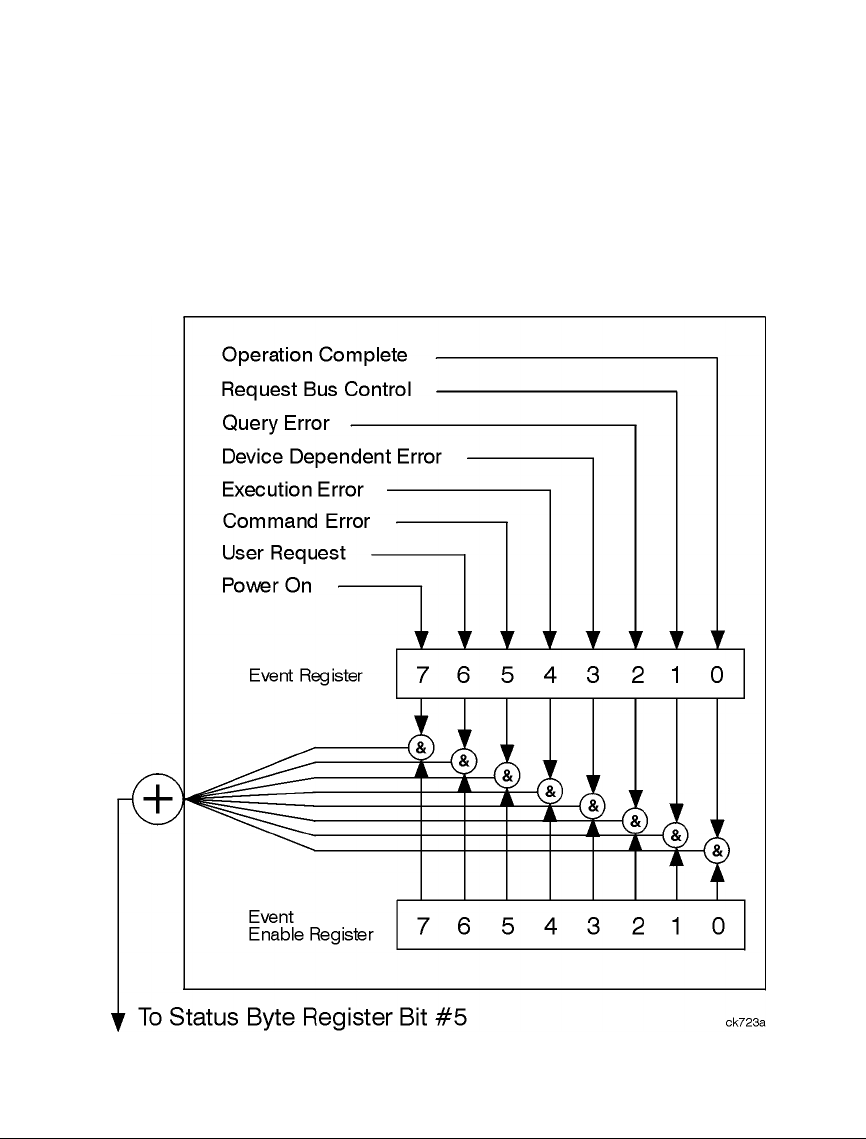

The Standard Event Status Group is used to determine the specific event that set bit 5 in the
Status Byte Register. This group consists of the Standard Event Status Register (an event
register) and the Standard Event Status Enable Register.
