Operating the Power Supply Remotely 4
Series N5700 User’s Guide 57

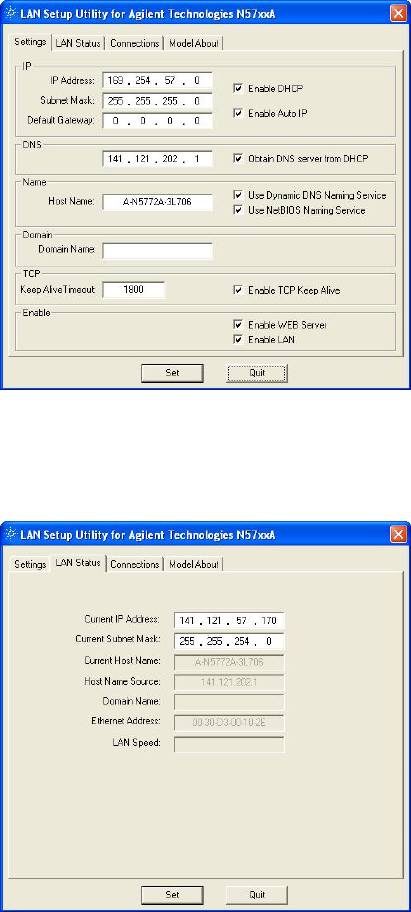

4 Configure the following LAN address parameters. These are
located under the Settings tab. For a description of these
parameters, refer to the previous section.
5 Enable the LAN and, optionally, the built-in Web server using the
applicable check boxes.
6 Click the Set button to save all the settings information.
7 Connect the LAN cable to your instrument and computer. Reboot
the instrument and then wait about 2.5 minutes before using the
new LAN settings.
8 View the LAN status settings located under the LAN Status tab.
The assigned IP address and hostname will appear on this
screen.
You can also use the Setup utility to view model-specific information
about your power supply. Click the Model About tab to view the
model number, serial number, active firmware version, backup
firmware version, and output ratings.
