Configuring the LAN Parameters
To configure the LAN parameters from the instrument’s Web server,
launch the Web server as previously described, and click on the View
& Modify Configuration tab on the left side of the page. Then click on
the Modify Configuration button on the top of the page. The following

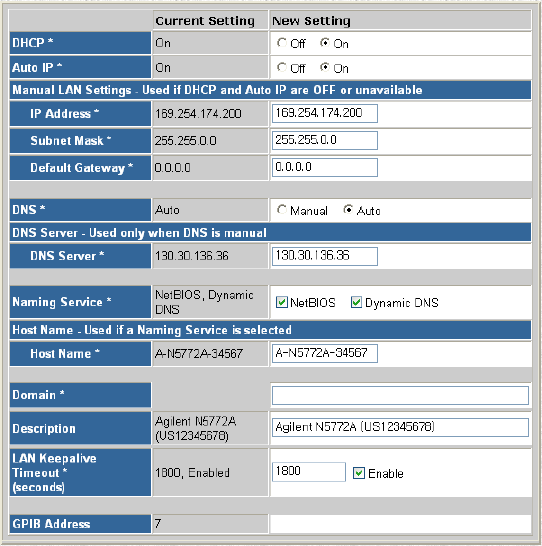

screen lets you modify the LAN parameters:
The configurable LAN parameters include:
DHCP This parameter allows Dynamic Host Configuration Protocol
(DHCP) to be enabled or disabled. DHCP is a protocol for
assigning dynamic addresses to devices on a network. If
DHCP is enabled (On), the instrument will try to obtain an IP
address from a DHCP server. If a DHCP server is found, the
DHCP server will assign an IP address, Subnet Mask and
Default Gateway to the instrument. If DHCP is disabled (Off)
or unavailable, the instrument will try to obtain an IP
address using AutoIP.
AutoIP This parameter allows automatic IP addressing to be
enabled or disabled. AutoIP automatically assigns
addresses on networks that do not have a DHCP server. If
AutoIP is enabled (On), an IP address, Subnet Mask and
Default Gateway will automatically be assigned to
the instrument. If AutoIP is disabled (Off), the instrument
will use the manual IP Address, Subnet Mask and Default
Gateway specified in the following fields during power-on.
