86 User’s Guide
U3042AE12 Theory of Operation

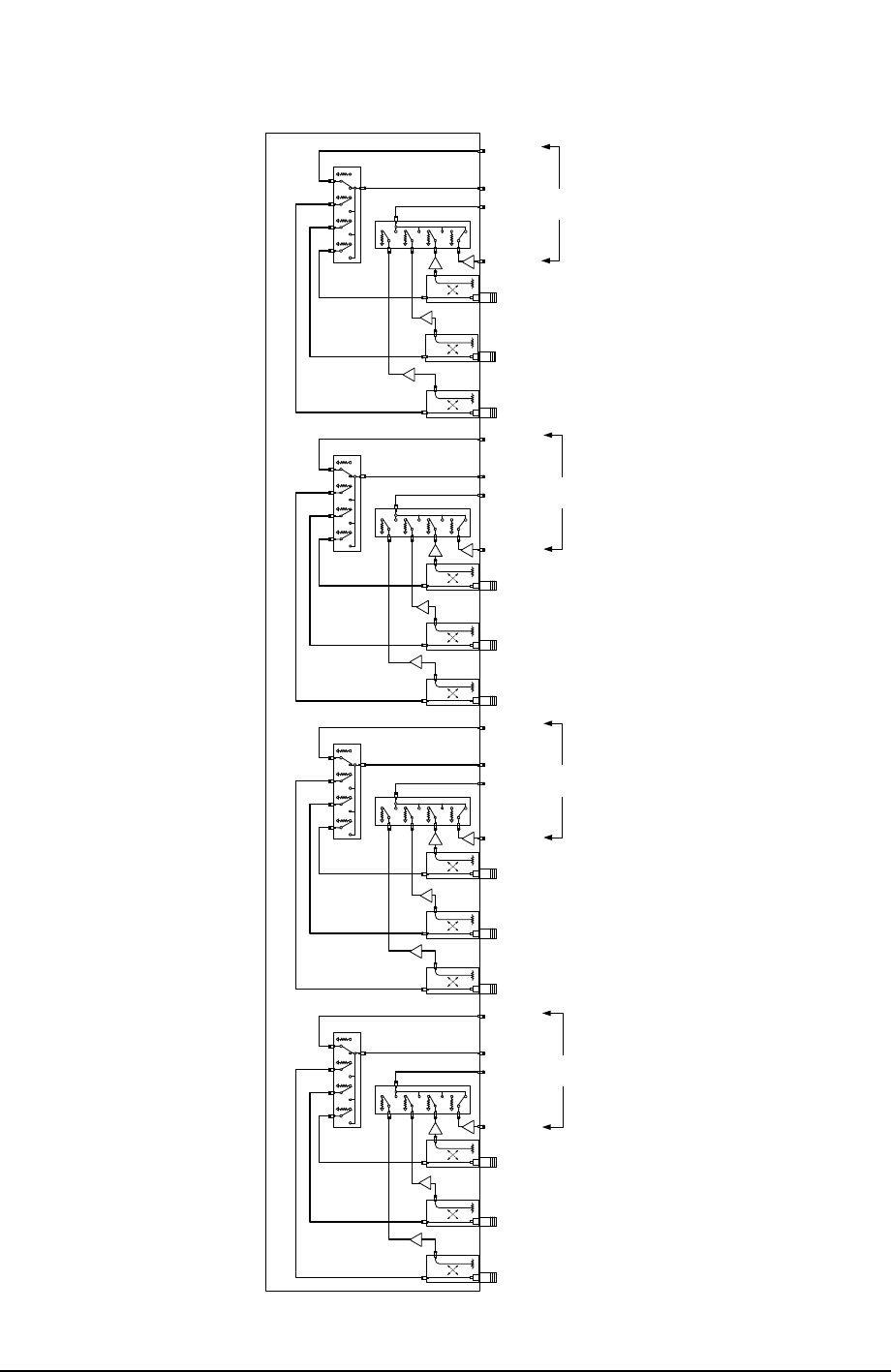

Figure 68 U3042AE12 Option 001 Configuration
SOURCE
CPLR THUR
CPLR ARM
SOURCE
CPLR THRU
CPLR ARM
SOURCE
CPLR THRU
CPLR ARM
SOURCE
CPLR THRU
CPLR ARM
Module 1
Module 2
Module 3 Module 4
C
1
234
C
1
2
3
4
PNA P2
JUMPERS
PNA P3
JUMPERS
PNA P4
JUMPERS
PNA P1
JUMPERS
SW 100
SW 101
SW 200
SW 201
SW 300
SW 301
SW 400
SW 401
U3042AE12 Option 001
Note: All amplifiers have attenuators on
outputs, not shown in block diagram.
Port 9Port 13
Port 5
Port 14
RCVR A OUT
Port 10 Port 6 Port 15 Port 11 Port 7 Port 16 Port 12 Port 8
RCVR C OUT
RCVR D OUT
RCVR B OUT
