U3042AE12 Operational Check

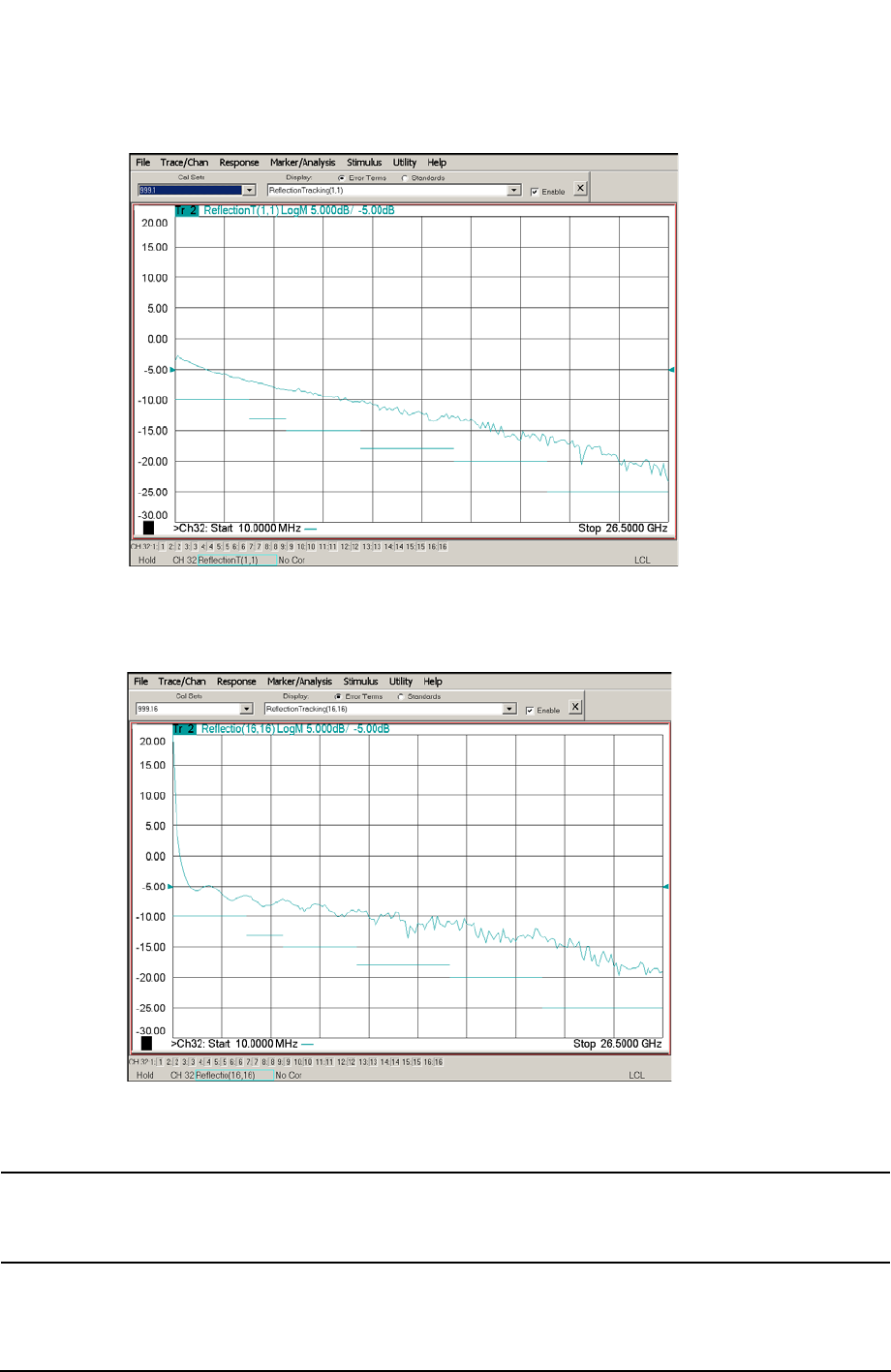

Figure 65 Standard Reflection Tracking Trace (Port 1-4) with N5242A
Figure 66 Standard Reflection Tracking Trace (Port 5-16) with N5242A
NOTE Response from 10 MHz to 500 MHz is normal due to the PNA-X couplers in
comparison to the U3042AE12 bridges. The bridges have more gain in the
coupled RF path.
