User’s Guide 75
U3042AE12 Operational Check
N5242A or N5230C 1-Port Calibration and Verification Procedure
1. Connect the ECal or the mechanical cal kit to Port 1 or the port you are testing. Refer to
Figure 2 on page 2. Torque to 8 in-lb. For more information press the Help button, see
Figure 59.
2. Perform a 1-Port Calibration on Port 1. On the PNA, press Response > CAL > Start Cal
> Calibration Wizard.
a. If using a mechanical cal kit, select SmartCal.
b. If using an ECal module, select ECal.
3. Continue following the Cal Wizard prompts. In the “Select Calibration Ports and ECal
Module” window, press Clear All and select Port 1, then press Next.

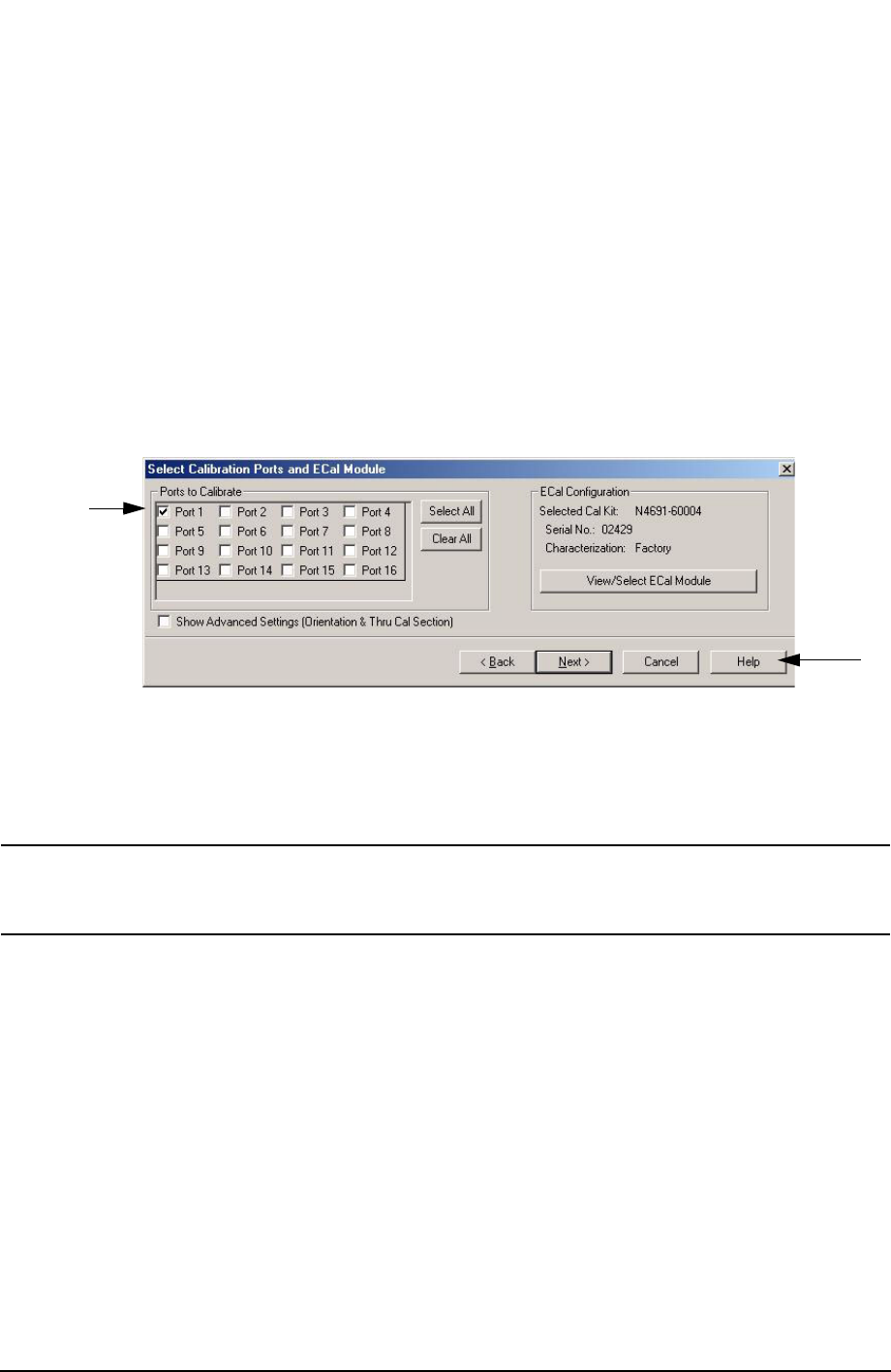

Figure 59 1-Port Calibration
4. Continue to follow the prompts until the “Calibration Completed” window appears.
5. At the Calibration Completed prompt, select Save As User Calset and type the name
999.1. Overwrite the Calset if it already exists. Press Save.
NOTE If you do not have a key board, select Save As User Calset > Edit Name and
save as 999.x. X is the port number you are calibrating. Refer to Figure 53 on
page 71. Use the numeric keypad on the PNA front panel to enter "999.1."
Help
