60 User’s Guide
U3042AE12 DUT Control Lines

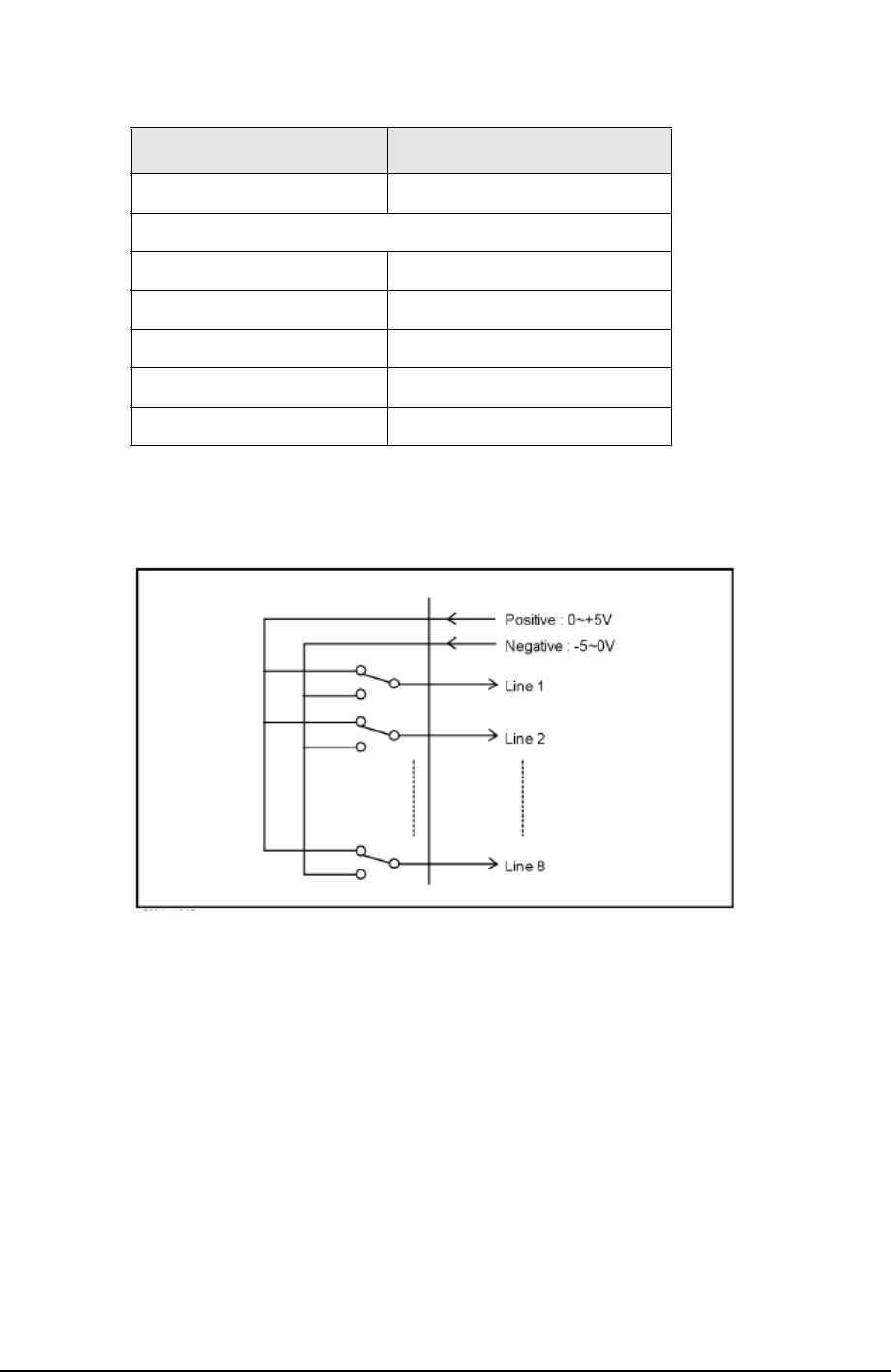

Figure 49 Block Diagram of DUT Control
Table 14 DUT Control Specifications
Item Specifications
Connector Shape 15–pin female D–Sub
Voltage Range:
Positive Input 0 to +5 V
Negative Input –5 to 0 V
Maximum Current 100 mA (in total of each line)
Impedance < 10 Ω
Range of Variable Voltage +2 to +5 V
