54 User’s Guide
U3042AE12 Controlling the Test Set with N5242A or N5230C
How to Access GPIB Command Processor
1. To access the GPIB Command Processor press: Utility > System > Configure >
SICL/GPIB/SCPI.

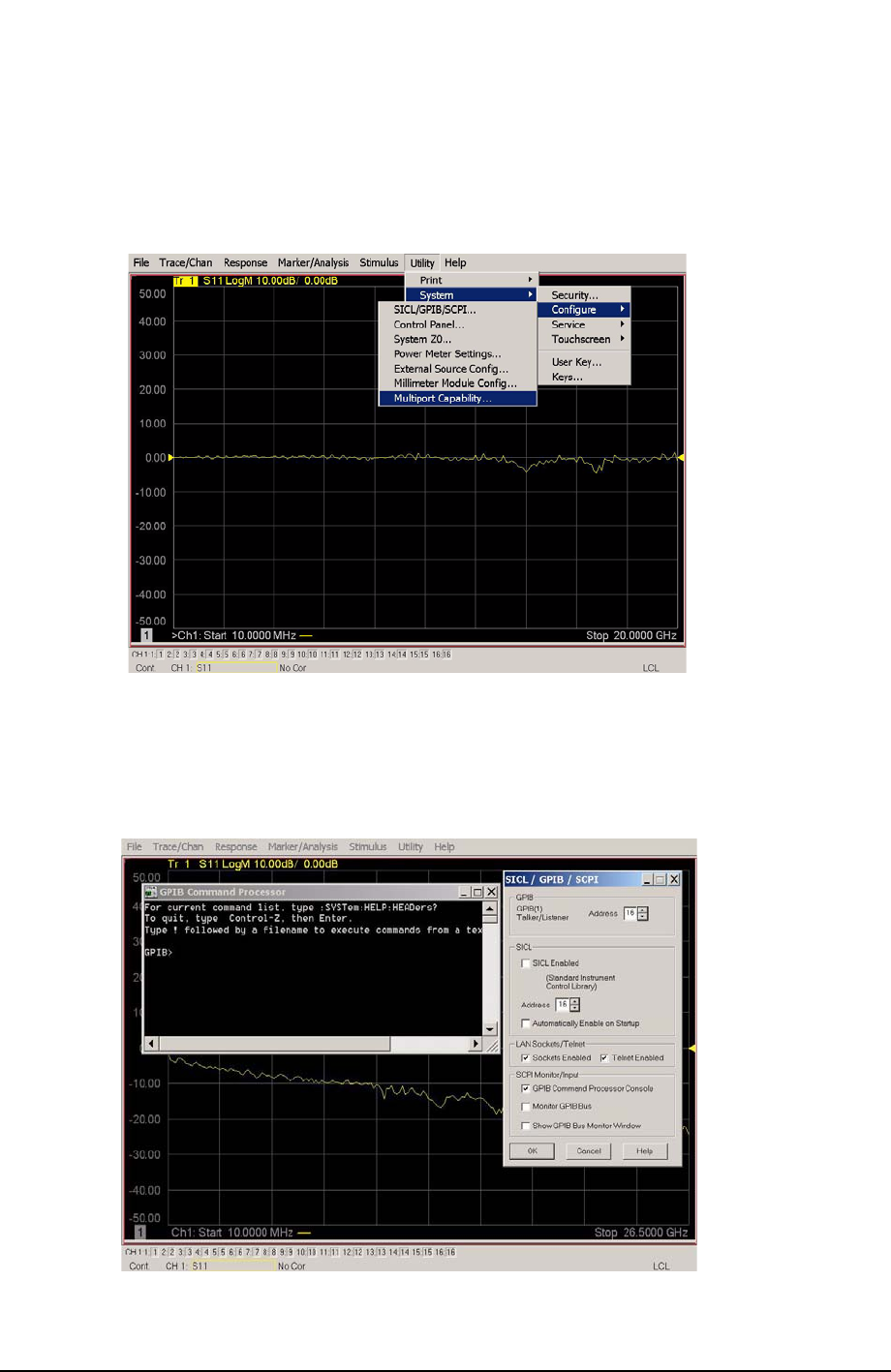

Figure 44 Utility Configure
2. Check System Controller and GPIB Command Processor Console and select OK.
Figure 45 GPIB Command Processor
