User’s Guide 41
U3042AE12 Controlling the Test Set with N5242A or N5230C
How to Access Multiport Mode
The Option 551 must be installed for Multiport capability. To access the multiport
application select Utility > System > Configure > Multiport Capability. See Figure 31.

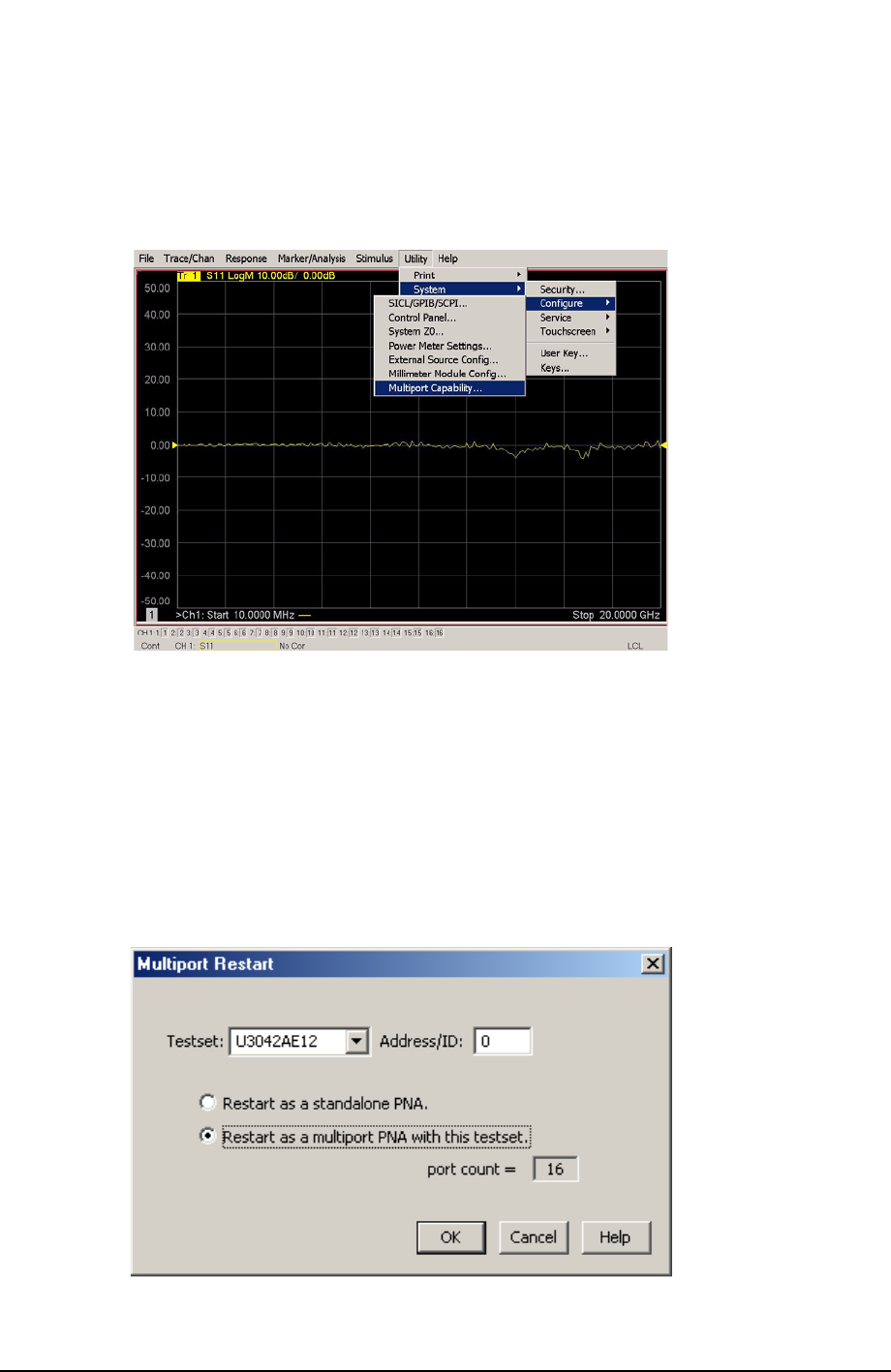

Figure 31 Selecting Multiport Mode
Select U3042AE12 (16-Port System) from the test set drop-down menu and select Restart
as a Multiport PNA with this test set. Press OK. The PNA will restart the network
application with the U3042AE12 Multiport Test Set interface features, see Figure 32.
If the U3042E12 is not available in the testset list, it will be necessary for you to copy the
required test set file to the PNA hard drive. The current version of the test set files are
available on the web at http://na.tm.agilent.com/multiport. Copy the appropriate file to
c:\program files\Agilent\Network Analyzer\testsets directory.
Figure 32 U3042AE12 Selection
