36 User’s Guide
U3042AE12 System Setup with N5242A
4. Install the two rear locking feet onto the U3042AE12. Looking at the front panel, the
N5242-20138 is the right foot and the N5242-20139 is the left foot. Two screws
(0515-2317) are included with this option. Refer to Figure 26.

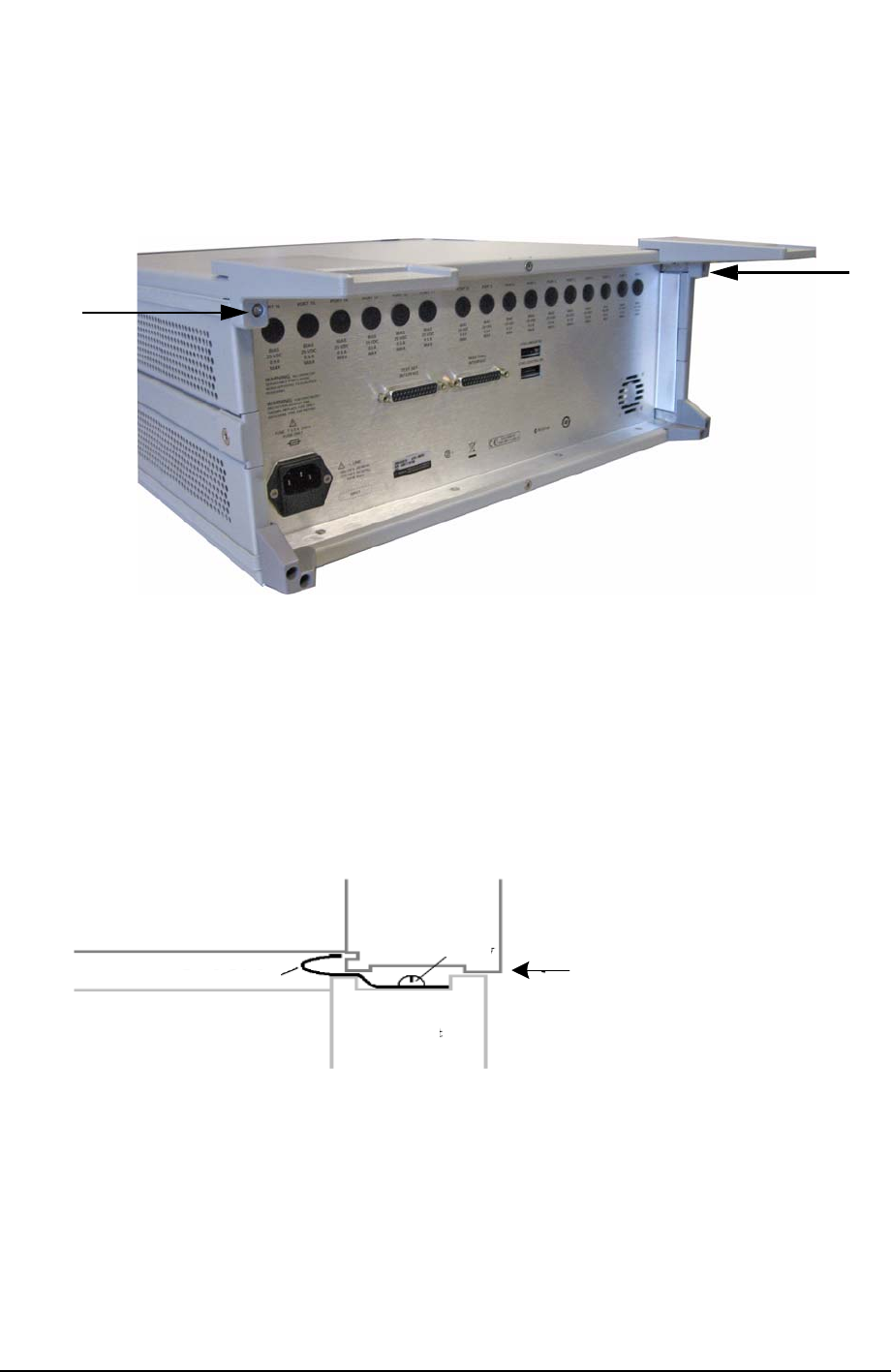

Figure 26 Install Locking Feet on U3042AE12
5. Place the network analyzer on top of the Test Set and ensure that the front frame of the
network analyzer is positioned slightly forward of the locks that are attached to the Test
Set. Slide the network analyzer back so the locks engage the front frame of the analyzer.
Refer to Figure 27.
Figure 27 Locking the Analyzer’s
Test Set
Front Frame
Network Analyzer
Front Frame
Slide the network Analyzer
back to engage the lock link
in the back of the network
analyzer's front frame
Lock Link
screw
