User’s Guide 33
U3042AE12 Controlling the Test Set with N5230A

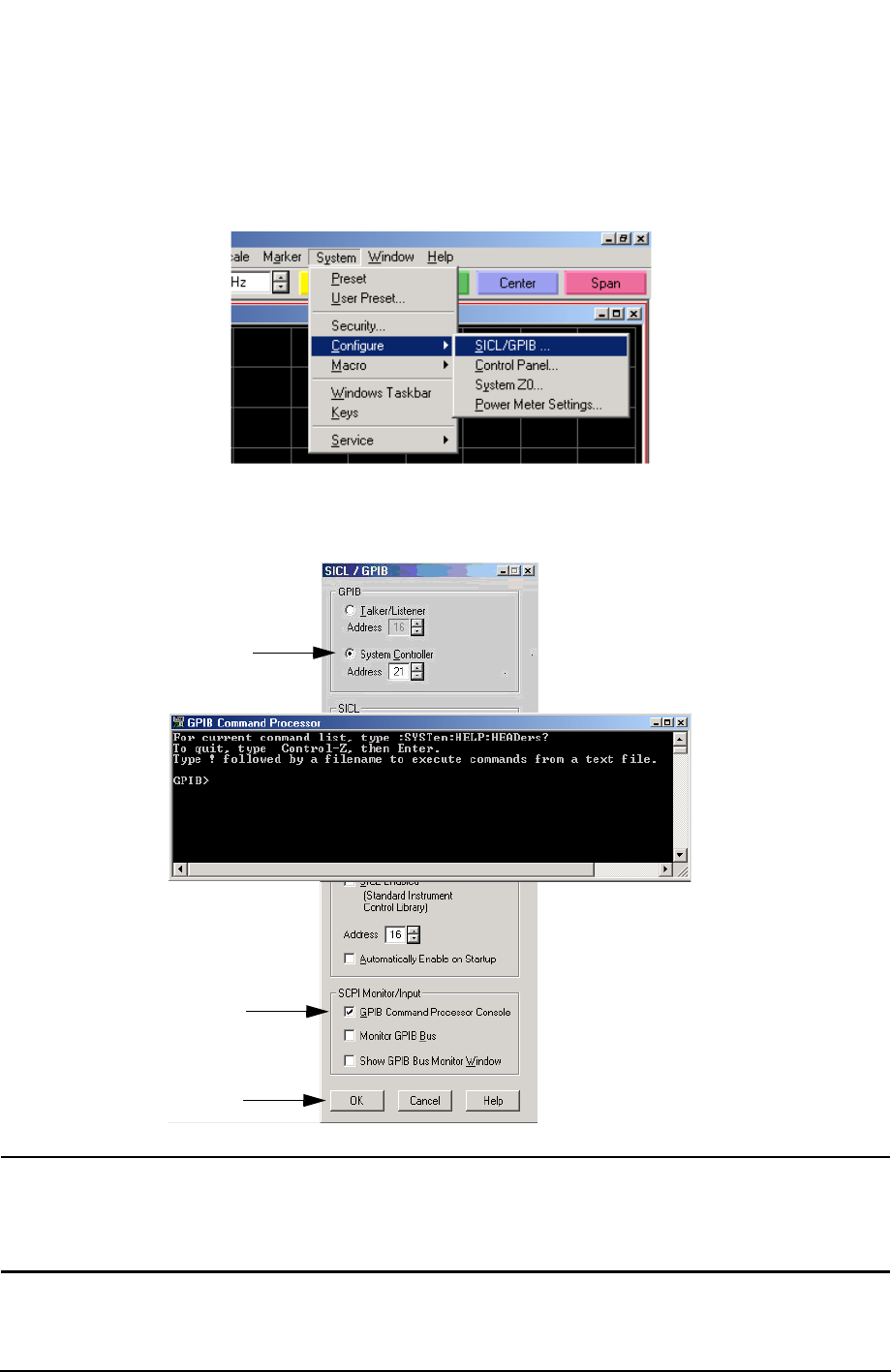

How to Access GPIB Command Processor with N5230A
1. To access the GPIB Command Processor press:
[Menu/Dialog] then tab to System, select Configure > SICL/GPIB
2.Select System Controller and GPIB Command Processor Console and select OK.
NOTE If the PNA is not in System Controller mode, an error message appears and
the GPIB Command Processor is disabled. To correct this situation, place the
PNA in System Controller mode and restart the GPIB Command Processor
Console.
