U3042AE12 Controlling the Test Set with N5230A
How to Access Interface Control Settings with N5230A
This section will describe how to setup and operate the U3042AE12 Multiport Test Set
with the N5230A/C 4-Port Series Network Analyzer. To access the InterfaceControl
application select Channel > InterfaceControl in the drop-down menu.
NOTE The Agilent N5230A/C 4-Port PNA–L Series Network Analyzer comes with
the Interface Control application. Please review this application before
connecting the U3042AE12 Test Set to the PNA. Information regarding this
application can be found in the PNA’s Help System Menu, InterfaceControl.

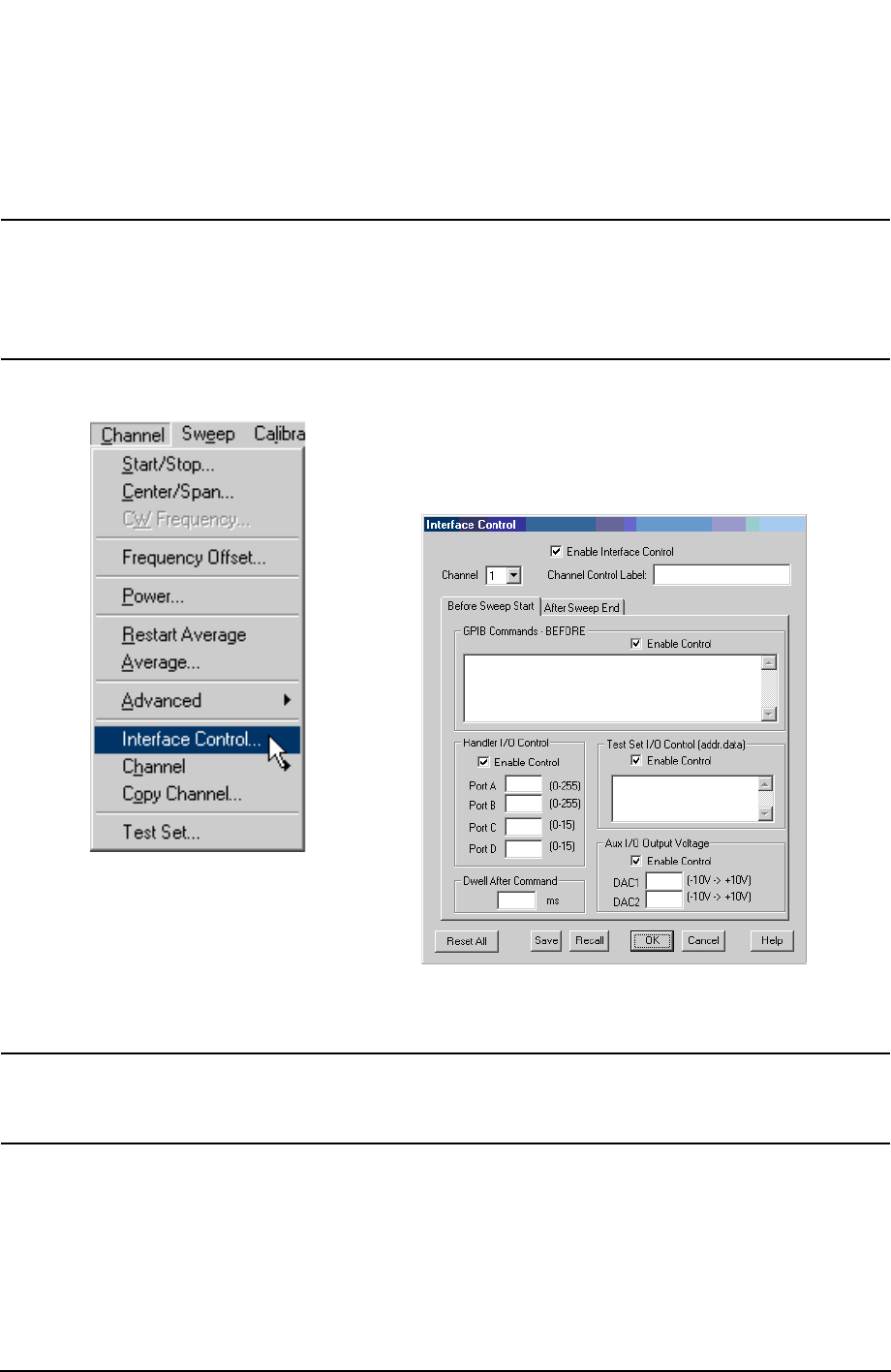

The application is shown below.
NOTE While using Interface Control, the PNA must be in GPIB System Controller
mode. Once this is complete you must restart the PNA application to go back
to Talker/Listener.
