U3042AE12 Controlling the Test Set with N5230A
Balanced Tab: Balanced Measurements can be configured by selecting the Balance tab
in the New Measurement menu. Refer to Figure 20.
For more information on balanced (differential) component measurement, refer to the
Application Note 1373-1 and 1373-2 (5988-5634EN and 5988-5635EN) at
http://www.home.agilent.com. In the search menu type in “Multiport and Balanced.”

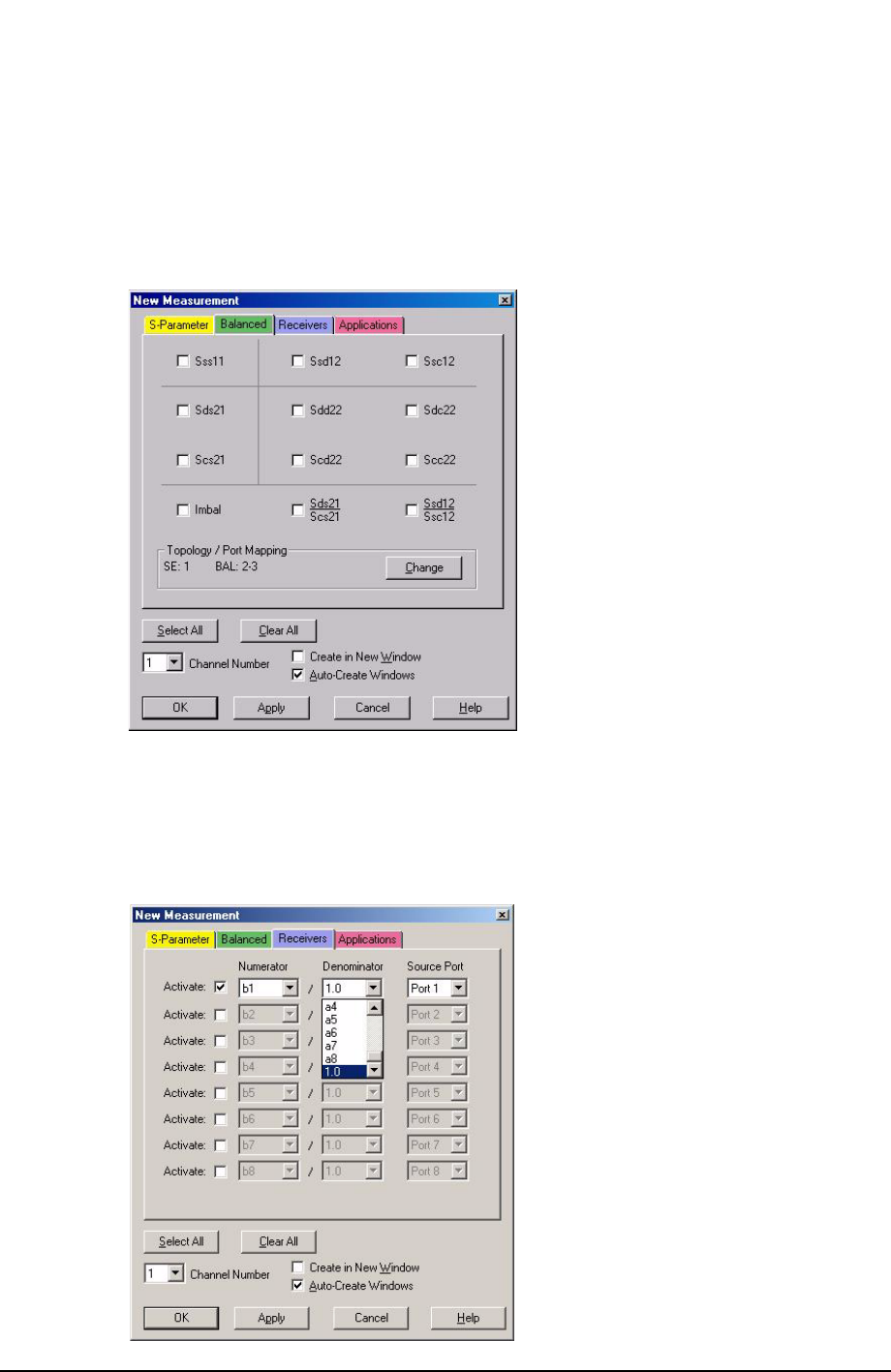

Figure 20 Balance
Receiver Tab: The S-Parameter measurements can be ratioed with selectable
Denominators for each port and receiver. Refer to the standard N5230A PNA-L
documentation for more information.
Figure 21 Receiver Ports
