User’s Guide 23
U3042AE12 Controlling the Test Set with N5230A
Trace Measure S-Parameter
S-Parameter selection can be accomplished using Trace Measure menu. Select TRACE >
Measure. Use the drop-down menus to select 1 of 256 S-Parameters for the 16-Port system,
see Figure 16. The first number in the Sxx selection is the Receiver Port and the second
number will be the Source Port. Any port can be selected to be the Receiver, Source or both,
as in S11. The front panel R LED indicates the port is the Receiver and the S LED
indicates the port is the Source.

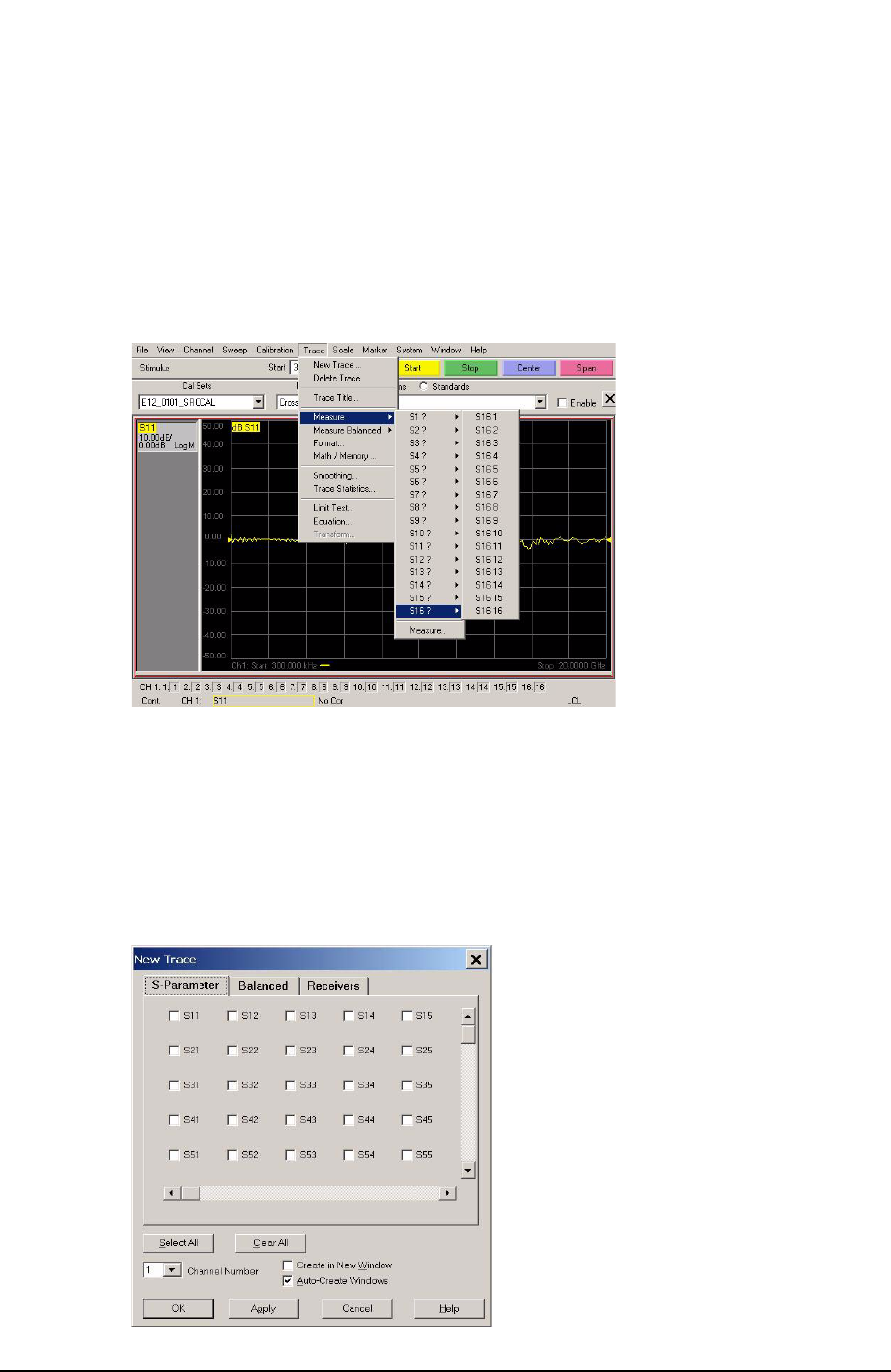

Figure 16 N5230A Trace Measure
New Trace Measure S-Parameter
S-Parameter Tab:
Multiple S-Parameters can be made from the New Measurement menu. In the drop-down
menu select Trace > New Trace. The New Measurement window allows the selection of any
of the 256 S-Parameter's. See Figure 17 and Figure 18.
Figure 17 16-Port New Trace Measure (S11 - S55)
