20 User’s Guide
U3042AE12 Controlling the Test Set with N5230A
N5230A Multiport Mode for Option 551
The PNA Multiport Mode selects the test set file that will enable the PNA to control the
Test Set. The PNA Multiport Mode allows you to complete a N-Port calibration using the
Cal Wizard application in the PNA. Refer to the PNA Help system for more information.

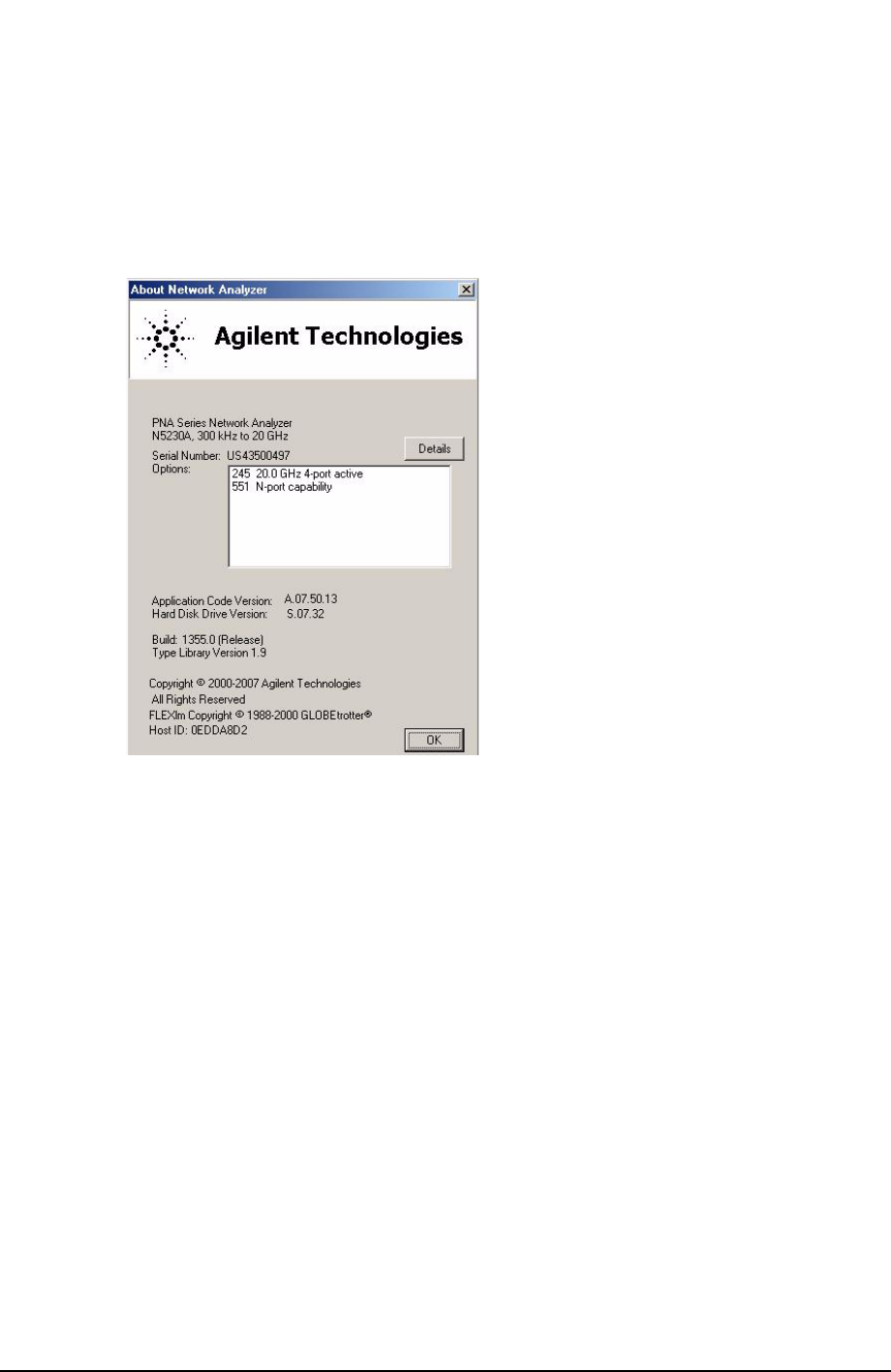

Figure 11 N5230A Options
