18 User’s Guide
U3042AE12 Controlling the Test Set with N5230A
Installing New Firmware
Before installing new firmware into your PNA-L, you must store the mixer calibration
files.

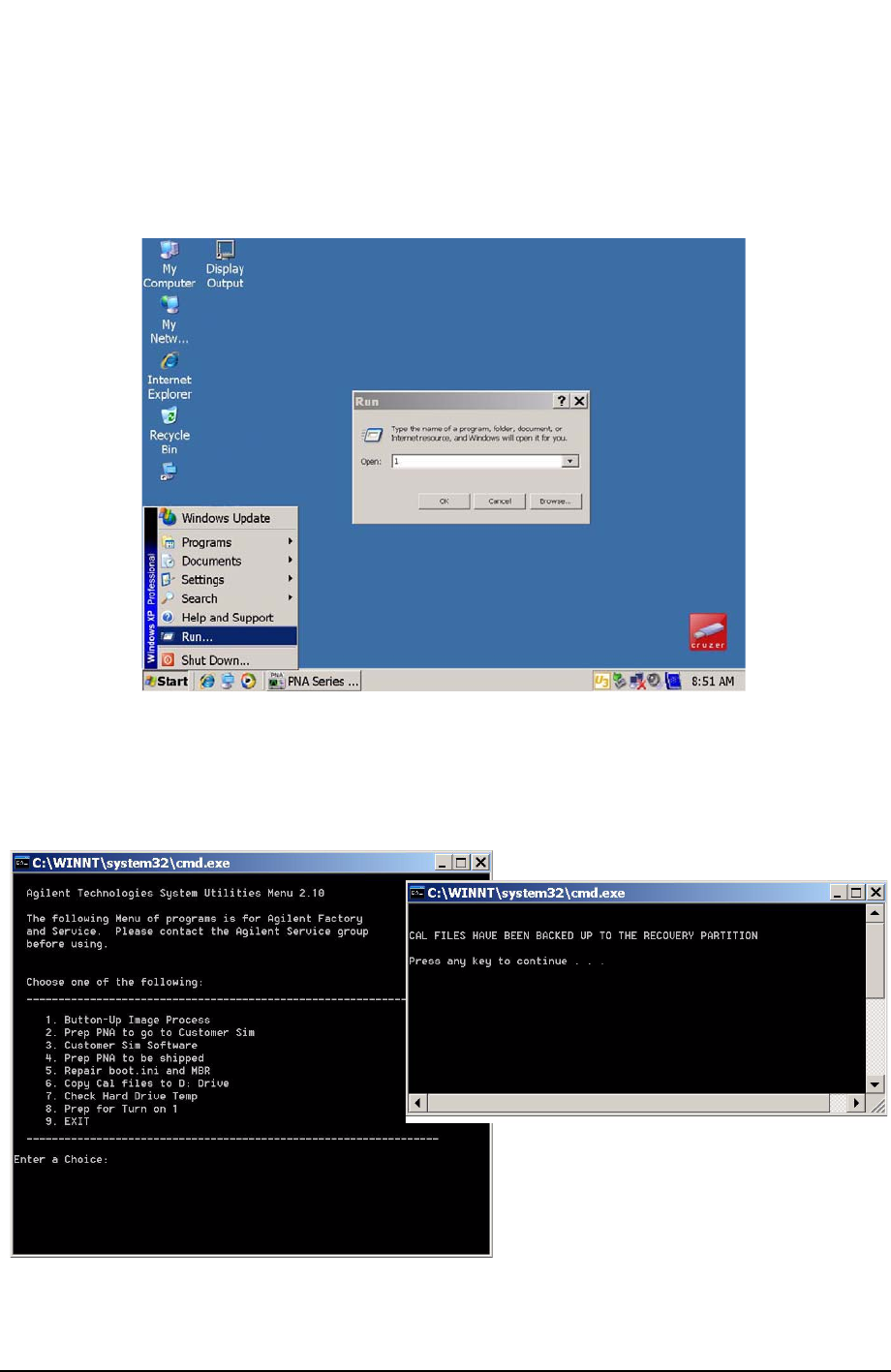

1. From the Start menu select run and enter 1 > OK.
2. Command line “Enter a Choice:”, using the front panel keys enter [6].
3. Command line “Press any key to continue....”, use any front panel key.
