Operation
36
Serial BERT 12.5 Gb/s User Guide
4.2.2 Front Panel – Display Panel

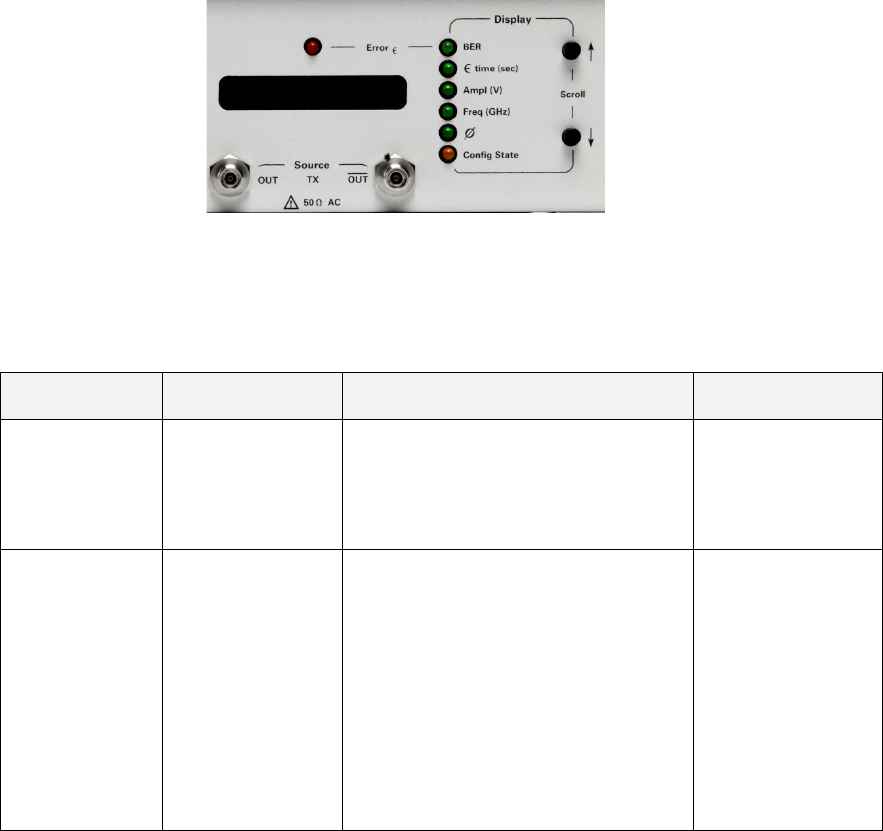

Figure 9. N4962A front panel – display panel
Table 11. N4962A front panel – display panel
Text
Type
Description
Default
Error ε
light
The error light is lit for a short period of
time when the error detector identifies a
bit error. If the error light is solid red,
many errors are be
ing detected.
N/A
display
panel
The eight
-character display shows the
current configuration option selected by
using the
Display-
>Scroll UP and DOWN
buttons.
When one of the configuration
Adjust
buttons (Freq, Ampl, Ø) are pressed, the
display will briefly show the
corresponding configuration setting.
Freq (GHz)
