Page 5-59XTRAEDIT CONFIGURATION

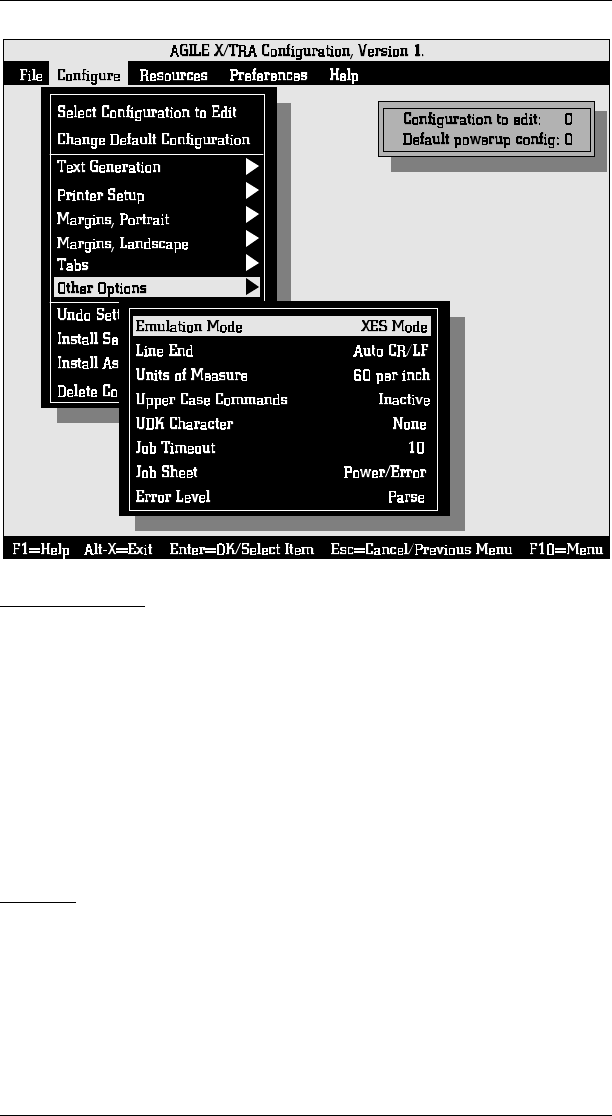

Emulation Mode
This option enables the user to set the configuration either to XES Mode
or to Passthrough Mode. XES Mode is the normal operating mode of the
XLI, enabling XES documents to be printed to the users PCL5 printer.
Passthrough Mode enables the user to print other document types,
including PCL5 documents, and PostScript documents if the users
printer supports PostScript.
The emulation mode being used will be indicated by the XLI LED, either
0 for XES Mode (normal operating mode), or P for Passthrough Mode.
The default is XES Mode for Configurations 0, 1, 2 and 3. The default for
Configurations 4, 5, 6 and 7 is Passthrough Mode.
Line End
XES protocol requires that certain printer commands are terminated with
a line ending, either a carriage return only (CR), a line feed only (LF) or
both (CR/LF). The type of line ending is defined by the user. This option
enables the user to indicate to the XLI which type of line ending is being
used in the users XES documents to terminate XES commands.
The user can select CR/LF, CR only, LF only or Auto CR/LF. Auto CR/LF
is the default, and it tells the XLI to accept any line ending as an XES
command terminator.
