Page 5-54 User’s Manual
Margins (Portrait, Landscape)
These settings determine the area of the page in which characters can be

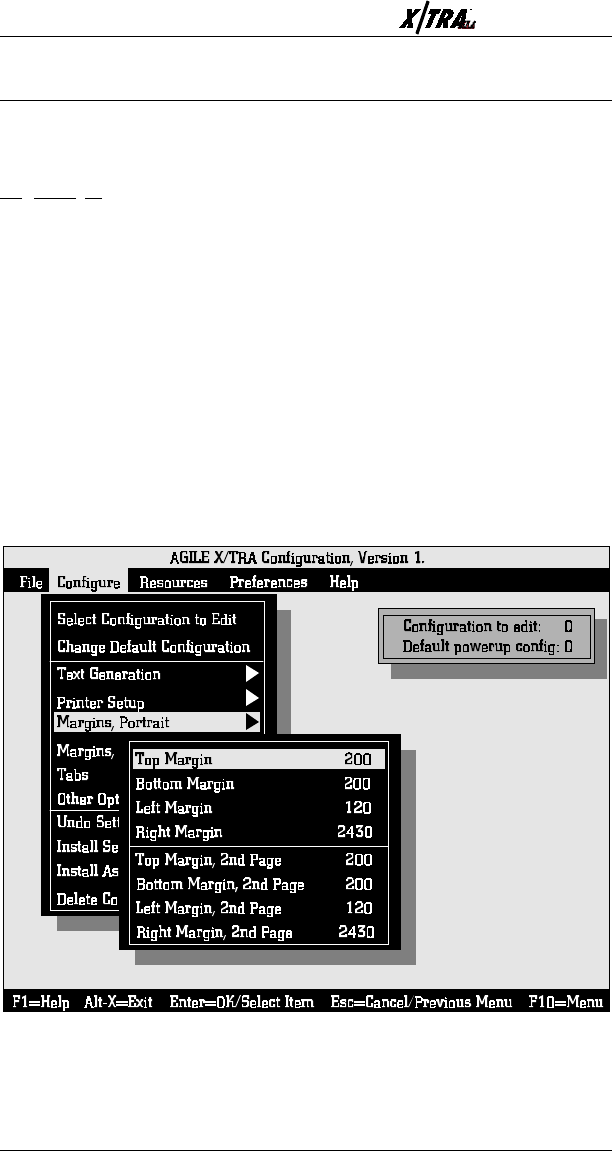

printed. The menu choices are indicated in the following illustration:
Top Margin
The Top Margin setting determines the number of inches from the top
edge of the page to the baseline (origin) of the first line of text. The value
can be entered in inches, 1/300 inches or 1/60 inches, depending upon the
setting of Measurement Setting for Entries under the Preferences menu.
If inches, the user can enter a value between 0.000 and 14.000. In 1/300
inches, the user can enter an integer value between 0 and 4200. In 1/60
inches, the user can enter an integer value between 0 and 840. The
default value for portrait pages is 200 (300ths inch); the default value for
landscape pages is 120 (300ths inch).
26
