Radiated Emissions Measurements
Making Radiated Emission Measurements

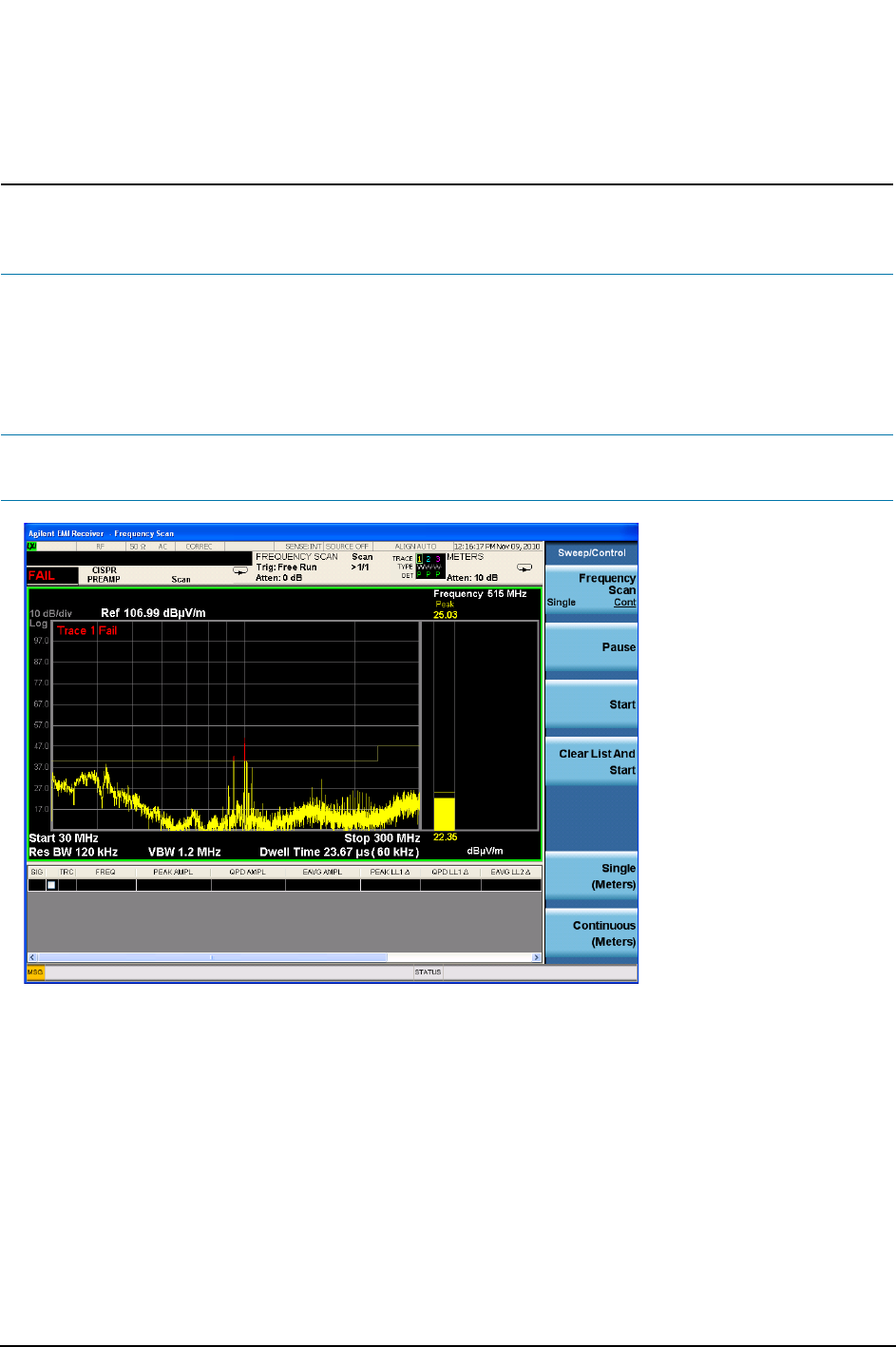

Running Frequency Scan
Step Action Notes
1 Clear any existing
signal list
a. Press Meas Setup, Signal
List, Delete Signals,
Delete All
2 Turn on the DUT and
start frequency scan
a. Turn the DUT on.
b. Press Meas Setup, Scan
Sequence, Scan Only
c. Press Sweep/Control,
Start.
3 Stop the scan a. Press Sweep/Control,
Stop
