Radiated Emissions Measurements
Making Radiated Emission Measurements
6 Load limit lines a. Press Recall, Data, Limit
Lines 1, Open.
b. Select My Documents,
EMC limits and
Ampcor, Open,
Limits, Open, Files
of type .lim, Open
c. Scroll to EN 55022,
Class A Rad (10m),
Open.
7 Load correction factors
for the biconical
antenna
a. Press Recall, Data,
Amplitude Corrections 1,
Open
b. Select My Documents,
EMC limits and
Ampcor, Open,
Ampcor, Open,
Ampcor Files of
type .ant
c. Select Biconical (30 MHz
to 300 MHz), Open.

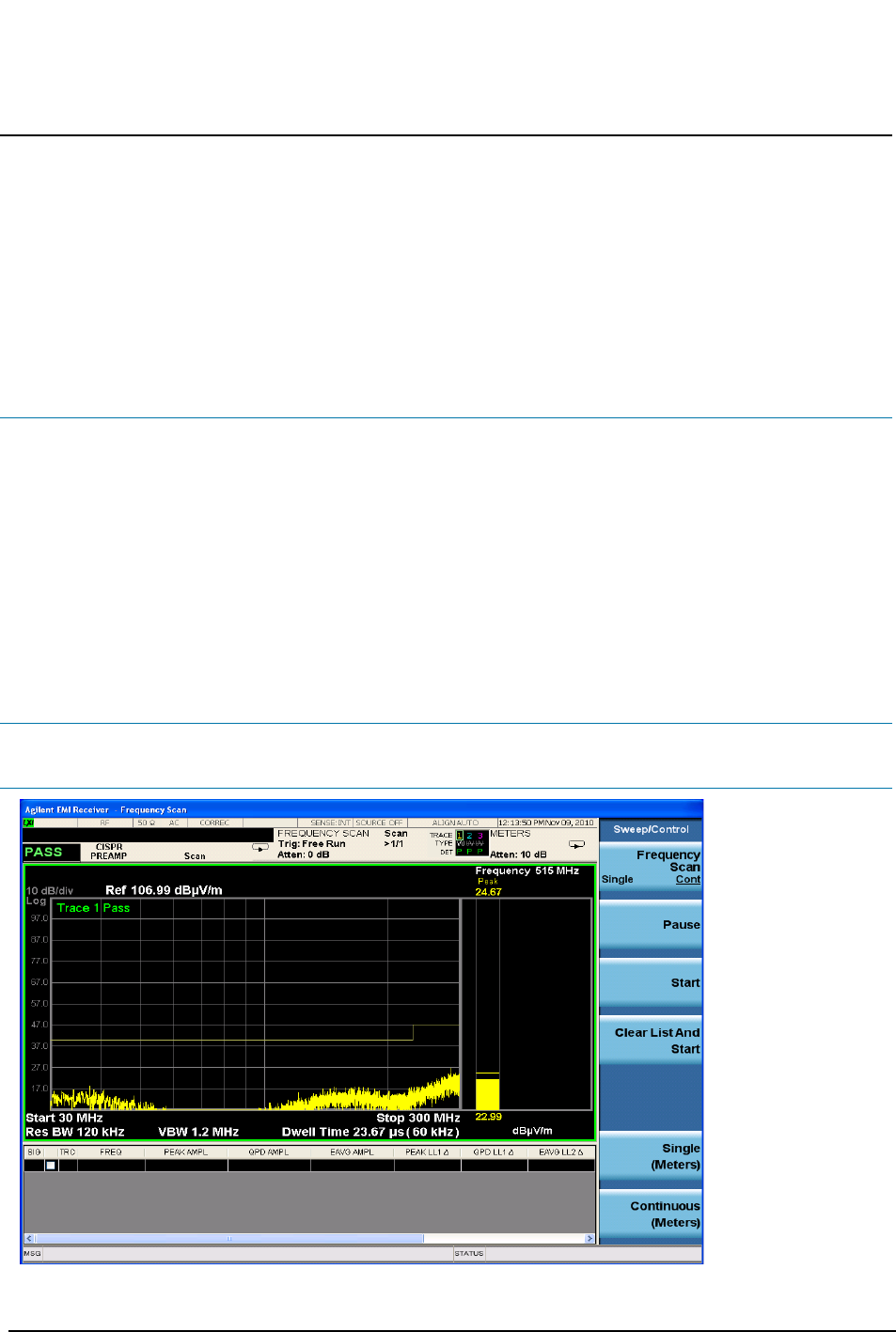

8 Turn limits and
corrections on.
a. Press Sweep Control, Start,
Stop.
Step Action Notes
