Radiated Emissions Measurements

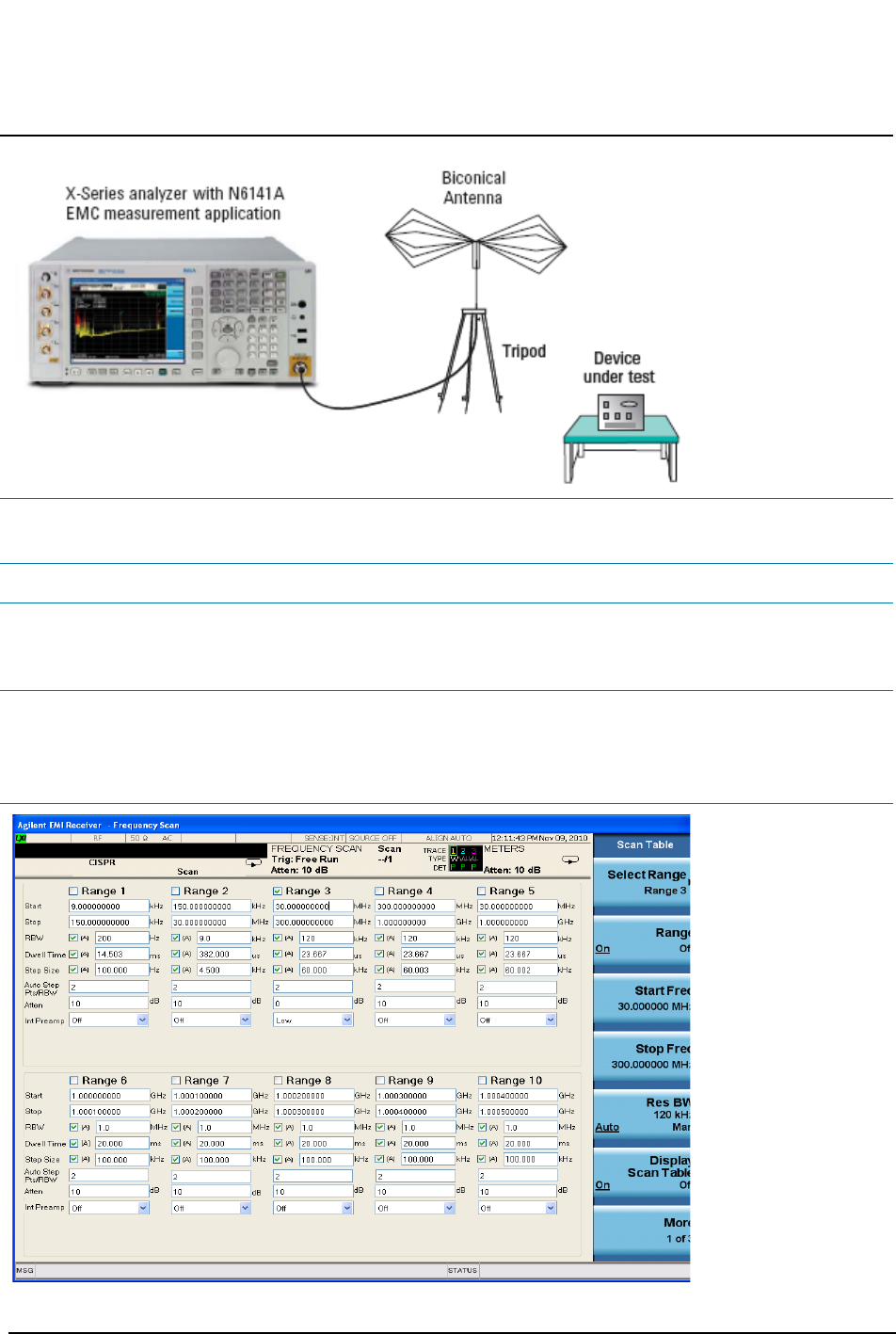

Making Radiated Emission Measurements
2 Turn on the signal
analyzer.
a. Press the front-panel power
key.
3 Select the EMC mode. a. Press Mode, EMI receiver.
4 Open the scan table
and select the desired
range
a. Press Meas Setup, Scan
Tabl e, Range 3 to On.
Deselect any other range that has a green
check.
5 Set the attenuation and
internal amplifier
a. Press Meas Setup, Scan
Tabl e, More 1 of 3,
Attenuation, 0, dB, Internal
Preamp, Low Band.
Step Action Notes
