Conducted Emissions Measurements
Making Conducted Emission Measurements

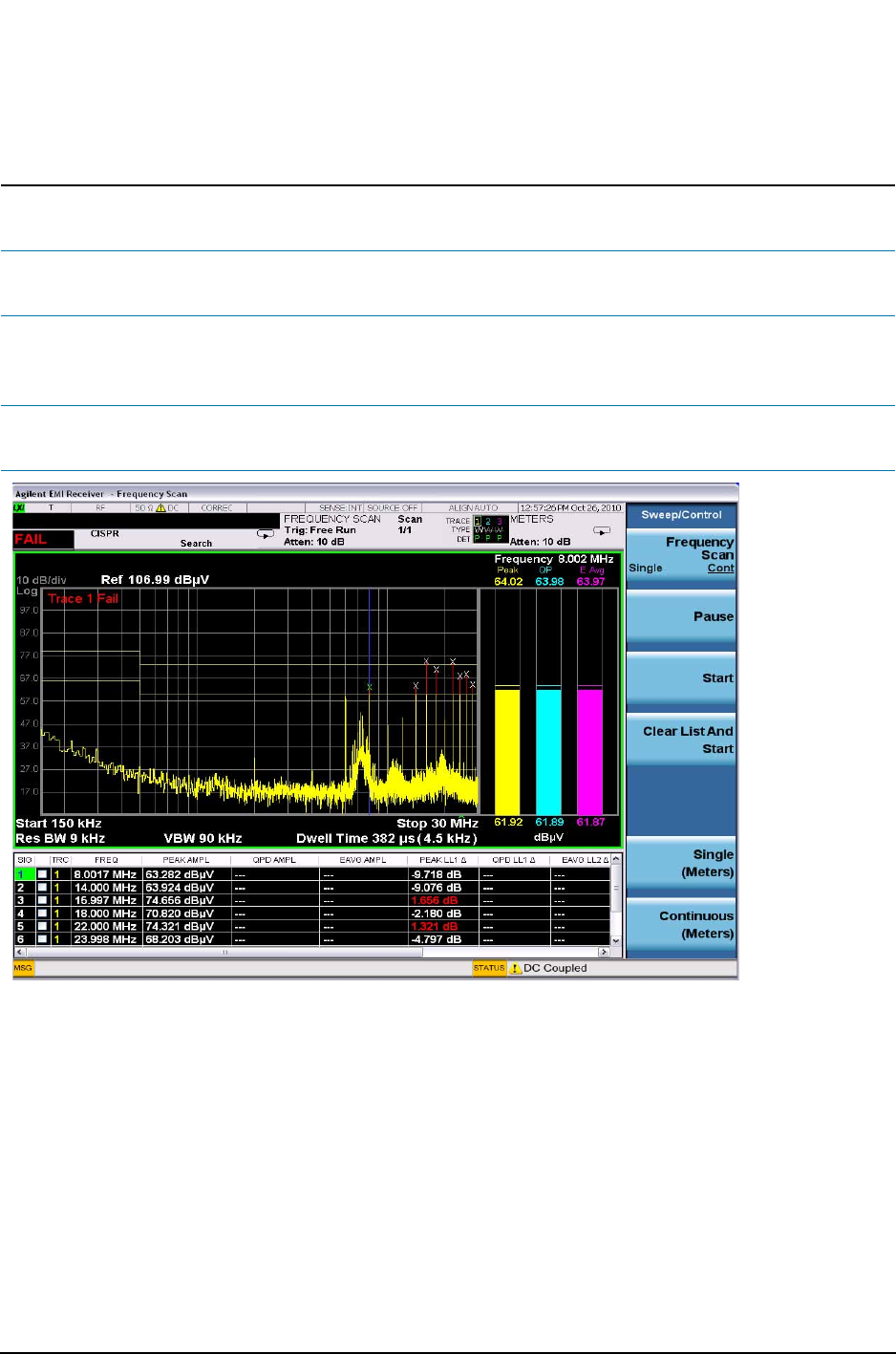

Adding signals to the signal list
Step Action Notes
1 Clear any existing signal
list
a. Press Meas Setup, Signal List,
Delete Signals, Delete All
2 Switch to scan and search a. Press Meas Setup, Scan Sequence,
Search Only
3 Set the search criteria to
peak criteria and limits
a. Press Meas Setup, More 1 of 2,
Limits, Search Criteria, Peak
Criteria and Limits
4 Add signals to the Signal
List
a. Press Sweep/Control, Start
