Conducted Emissions Measurements
Making Conducted Emission Measurements

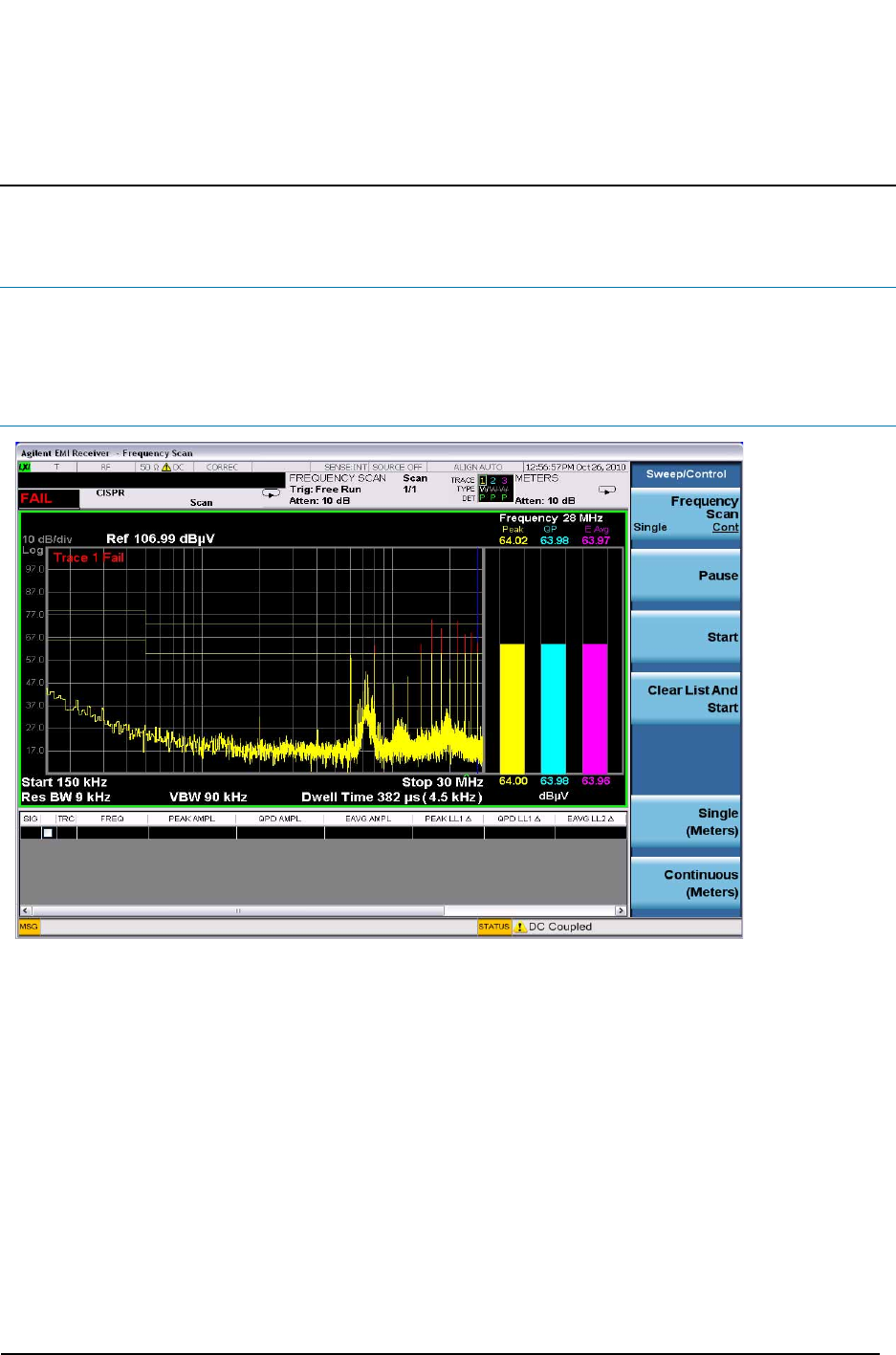

Running Frequency Scan
Step Action Notes
1 Turn on the DUT and scan a. Turn the DUT on.
b. Press Meas Setup, Scan Sequence,
Scan Only, Sweep/Control, Start.
Signals above the limit are
designated in red.
2 Stop the scan a. Press Sweep/Control, Stop This step will not be
necessary if the
measurement has completed
the number of scans set or
the desired time.
