:DISPlay:CGRade:SCHeme
Command :DISPlay:CGRade:SCHeme {CLASsic | TEMP}
The :DISPlay:CGRade:SCHeme command sets the color grade scheme to
CLASsic or TEMP.
Color grade persistence is displayed in seven different colors which
represent the range of the counters in the database. In the CLASsic color
grade scheme, the counters with the largest counts are displayed using a
white pixel while the counters with the smallest counts are displayed
using green pixels.

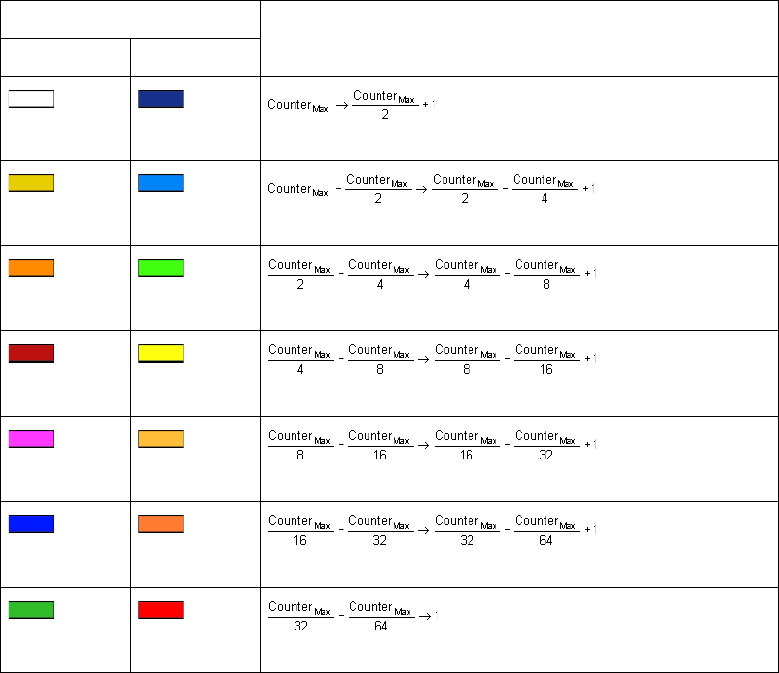

The following table shows the counter ranges for each color for both the
CLASsic and TEMP color grade schemes.
Example This example sets the color grade scheme to "classic".
myScope.WriteString ":DISPlay:CGRade:SCHeme CLASsic"
Query :DISPlay:CGRade:SCHeme?
Color Grade Scheme Range
Classic Temperature
