See Also • "Introduction to :WAVeform Commands" on page 630
• ":ACQuire:COUNt" on page 197
• ":ACQuire:POINts" on page 200
• ":ACQuire:TYPE" on page 208
• ":DIGitize" on page 162
• ":WAVeform:COUNt" on page 637
• ":WAVeform:DATA" on page 638
• ":WAVeform:FORMat" on page 640
• ":WAVeform:POINts" on page 641
• ":WAVeform:TYPE" on page 655
• ":WAVeform:XINCrement" on page 658
• ":WAVeform:XORigin" on page 659
• ":WAVeform:XREFerence" on page 660
• ":WAVeform:YINCrement" on page 661
• ":WAVeform:YORigin" on page 662
• ":WAVeform:YREFerence" on page 663
Example Code
' GET_PREAMBLE - The preamble block contains all of the current
' WAVEFORM settings. It is returned in the form <preamble_block><NL>
' where <preamble_block> is:
' FORMAT : int16-0=BYTE, 1 = WORD, 4 = ASCII.

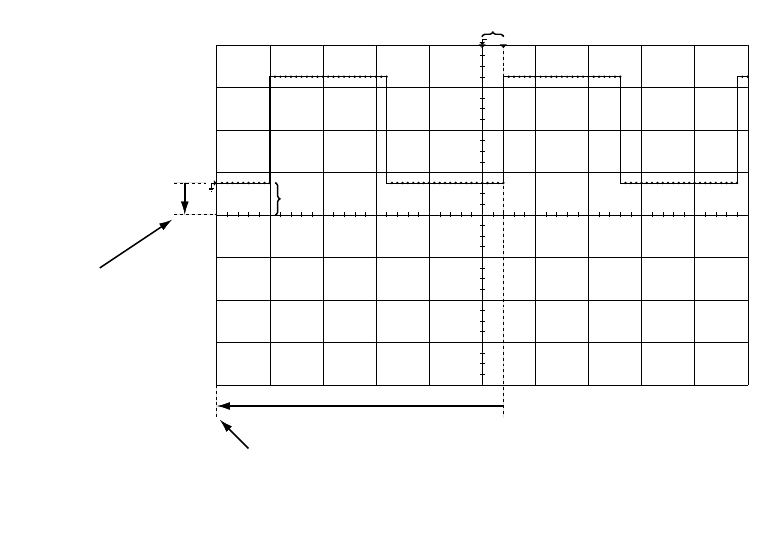

Y origin (V)
Y increment =
voltage of 1 Vstep
Y reference = #Vsteps / 2
X origin (t)
X increment (t) = time between successive points
X reference = 0
Delay = (#points / 2) * Xincrement + Xorigin
Offset
#Vsteps =
65536 (if format = WORD)
256 (if format = BYTE)
