:HWEenable (Hardware Event Enable Register)
(see page 798)
Command Syntax
:HWEenable <mask>
<mask> ::= 16-bit integer
The :HWEenable command sets a mask in the Hardware Event Enable
register. Set any of the following bits to "1" to enable bit 12 in the
Operation Status Condition Register and potentially cause an SRQ (Service
Request interrupt to be generated.
Query Syntax
:HWEenable?
The :HWEenable? query returns the current value contained in the
Hardware Event Enable register as an integer number.
Return Format
<value><NL>
<value> ::= integer in NR1 format.
To HWE bit in
Operation Status
Condition Register
+
OR
Bat
ON

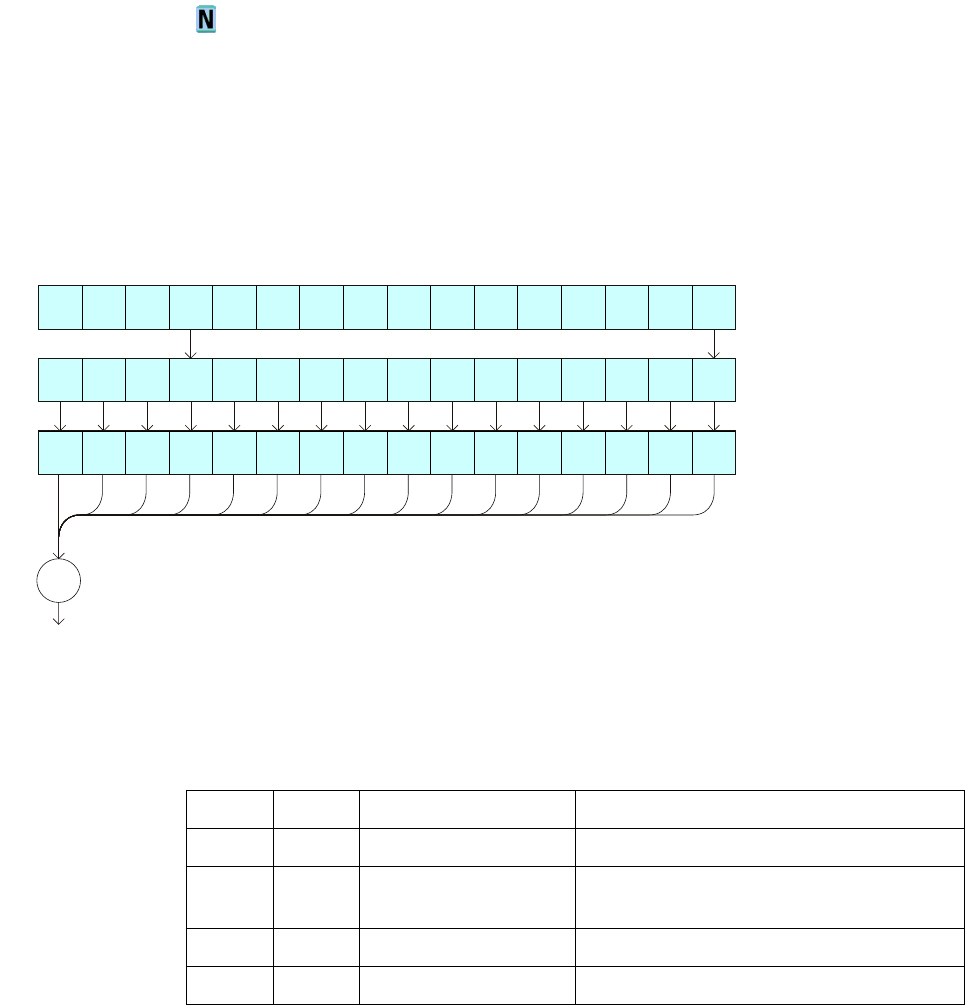

:HWERegister:CONDition?
Hardware Event Condition Register
:HWEenable
:HWEenable?
Hardware Event Enable (Mask) Register
1023456798101112131415
:HWERegister[:EVENt]?
Hardware Event Event Register
PLL
Locked
0
Bat
ON
PLL
Locked
12
Table 46 Hardware Event Enable Register (HWEenable)
Bit Name Description When Set (1 = High = True), Enables:
15-13 --- --- (Not used.)
12 PLL
Locked
PLL Locked This bit is for internal use and is not intended
for general use.
11-1 --- --- (Not used.)
0 Bat On Battery On Event when the battery is on.
